The Ultimate Guide to Electrofusion Fitting Series: HDPE 90° Elbow

Introduction

HDPE (High-Density Polyethylene) electrofusion 90° elbows are essential components in modern piping systems, providing a reliable and durable solution for creating right-angle connections. This guide will cover the specifications, applications, and benefits of HDPE electrofusion 90° elbows, helping you understand why they are a preferred choice for various industries.

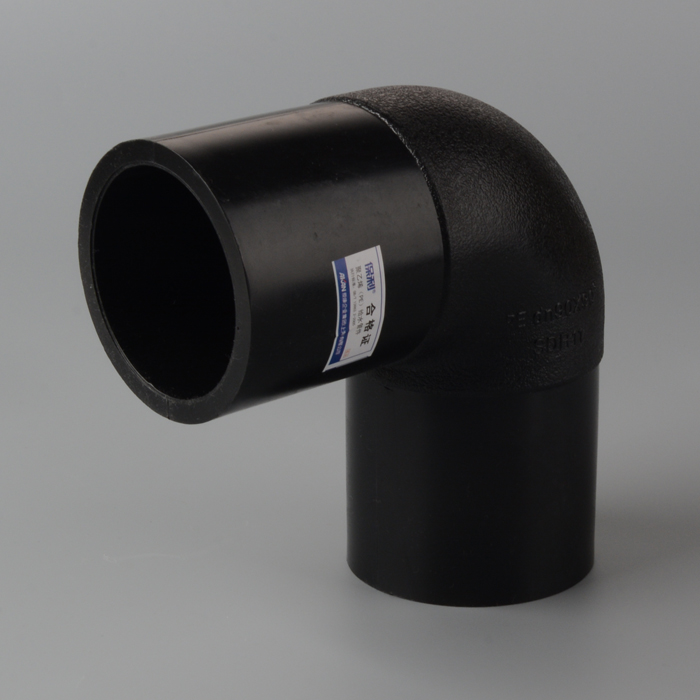

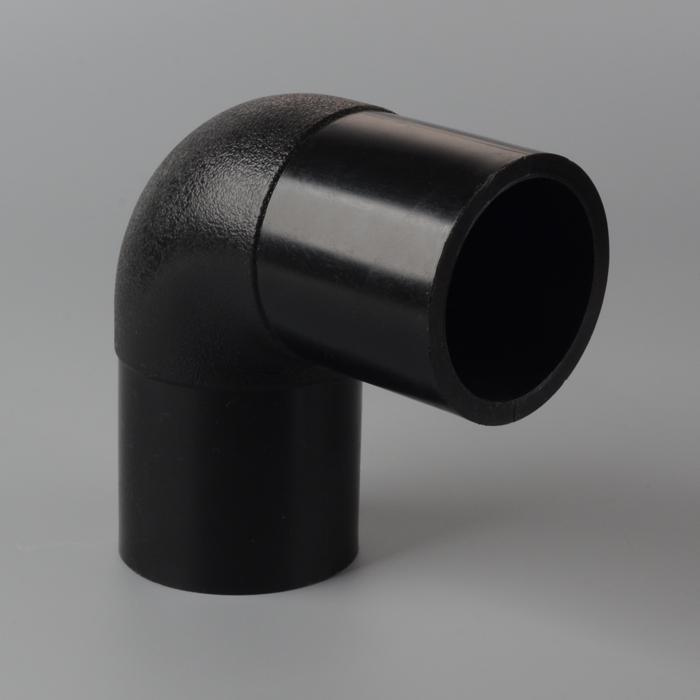

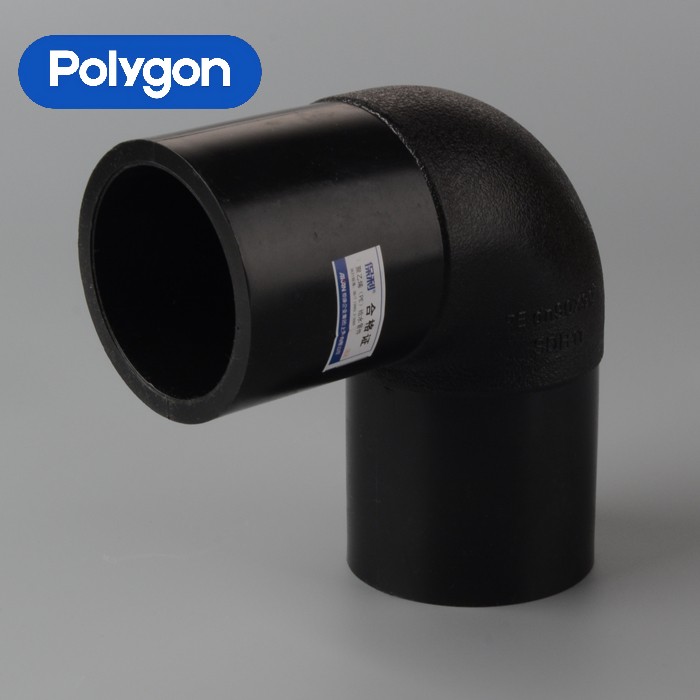

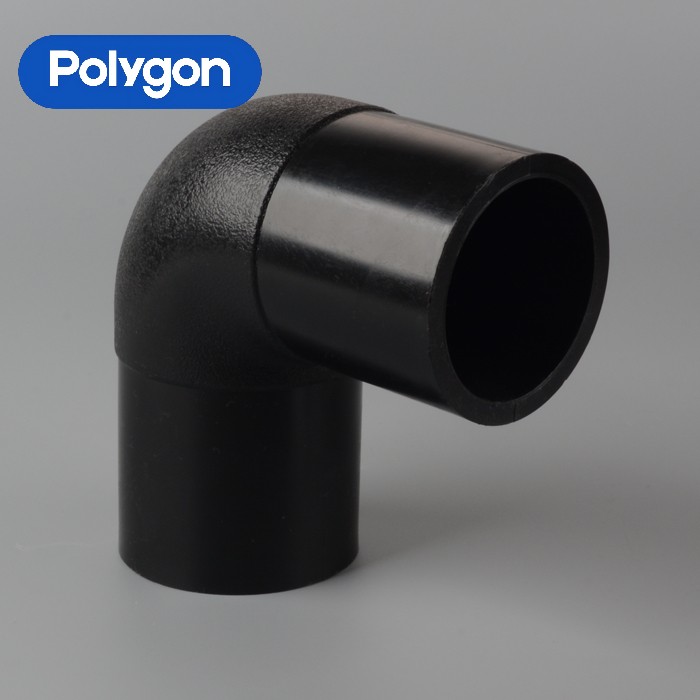

What is an HDPE Electrofusion 90° Elbow?

An HDPE electrofusion 90° elbow is a specialized fitting used to create a 90-degree turn in HDPE piping systems. It features an integrated heating coil that, when energized, melts the surface of the HDPE pipe and fitting, creating a strong, leak-free joint. This process ensures a seamless connection that is as strong as the pipe itself.

Key Specifications

Material

Raw Material: High-Density Polyethylene (HDPE), typically PE100 or PE80.

Color: Black or blue.

Size Range

Diameter Range: DN20 to DN800mm (1/2 inch to 32 inches).

Pressure Rating

Pressure Classes: SDR11-PN16, SDR17-PN10.

Manufacturing Process

Process: Injection molded in one piece for precision and strength.

Standards: Conforms to ISO4427-3, EN12201-3, AS/NZS 4129, EN1555, EN ISO15494.

Applications

HDPE electrofusion 90° elbows are versatile and used in a variety of industries due to their durability and resistance to corrosion. They are ideal for:

Water Supply Systems: Ensuring reliable water distribution.

Gas Distribution Networks: Preventing leaks in gas lines.

Agricultural Irrigation: Connecting main and branch pipes in irrigation systems.

Industrial Fluid Handling: Handling various industrial fluids.

Mining and Dredging Projects: Managing fluid flow in harsh environments.

Benefits of HDPE Electrofusion 90° Elbows

High-Strength Connection

The electrofusion process creates a joint that is as strong as the pipe itself, ensuring a durable and leak-free connection.

Corrosion Resistance

HDPE material is highly resistant to chemical corrosion, making it suitable for handling corrosive media.

Temperature Resistance

HDPE elbows maintain their physical properties across a wide temperature range, making them suitable for various environmental conditions.

Easy Installation

The welding process is straightforward and does not require additional materials or fittings, simplifying the installation process.

Cost-Effective

HDPE electrofusion 90° elbows offer an excellent price-to-performance ratio, making them a cost-effective solution for both small and large-scale projects.

Choosing the Right HDPE Electrofusion 90° Elbow

When selecting an HDPE electrofusion 90° elbow, consider the following factors:

Size and Pressure Requirements: Ensure the elbow matches the diameter and pressure requirements of your piping system.

Connection Type: Choose an elbow that is suitable for electrofusion welding.

Standards and Certifications: Look for elbows that meet relevant industry standards to ensure quality and reliability.

Manufacturer's Reputation: Select a reputable manufacturer to ensure high-quality products and reliable technical support.

Conclusion

HDPE electrofusion 90° elbows are essential for creating reliable and durable connections in HDPE piping systems. Their strength, corrosion resistance, and ease of installation make them a preferred choice for various applications. By choosing the right HDPE electrofusion 90° elbow, you can ensure the long-term success and efficiency of your piping system.

For more information or to purchase HDPE electrofusion 90° elbows, contact a reputable supplier who can provide detailed specifications and support for your specific needs
