The Ultimate Guide to Electrofusion Fitting Series: HDPE Reducing Tee

Introduction

HDPE (High-Density Polyethylene) electrofusion reducing tees are specialized fittings used in HDPE piping systems to connect pipes of different diameters. They are essential for branching out the main pipeline and ensuring efficient fluid flow. This guide will cover the specifications, applications, and benefits of HDPE electrofusion reducing tees, helping you understand why they are a preferred choice for various industries.

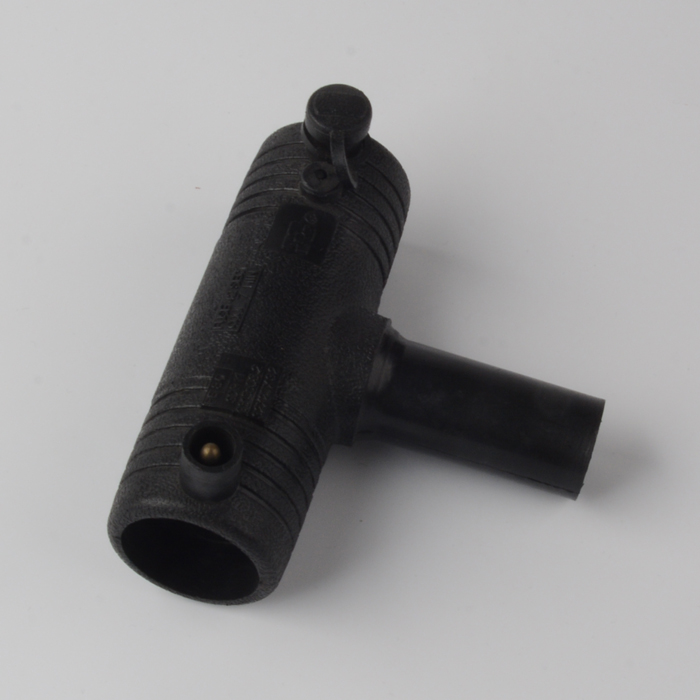

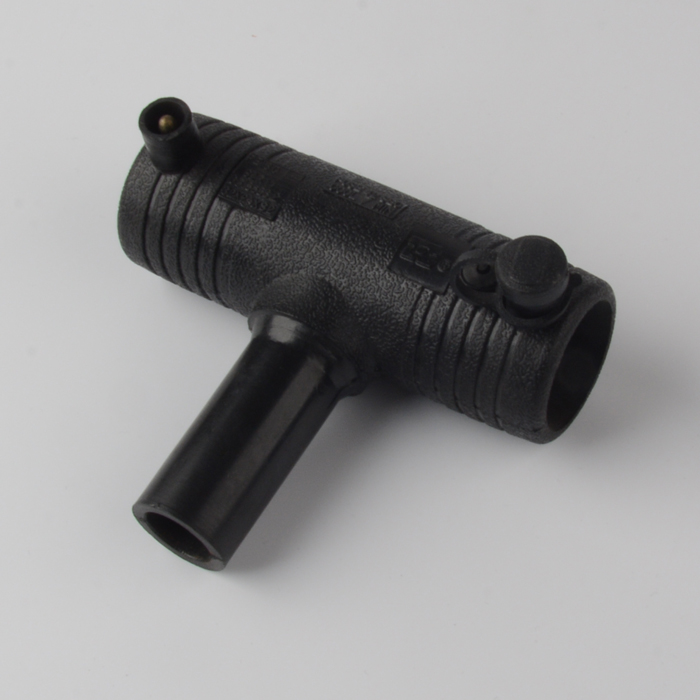

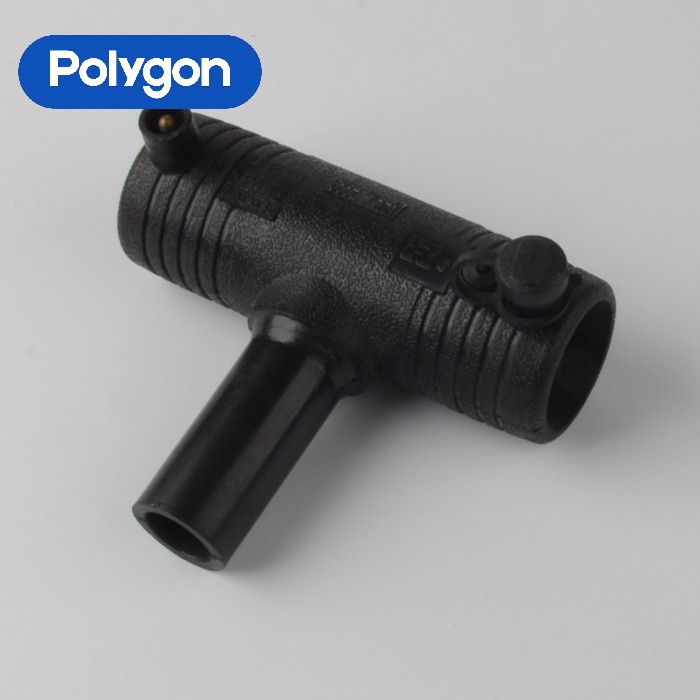

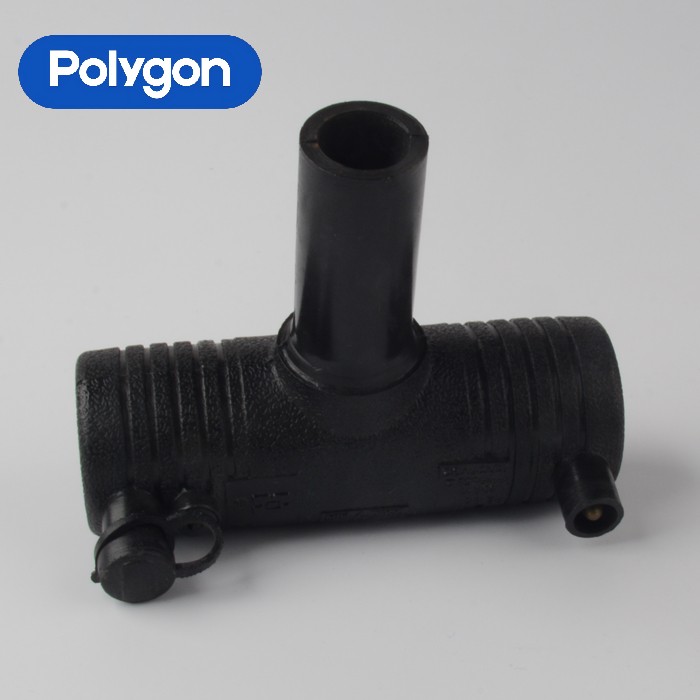

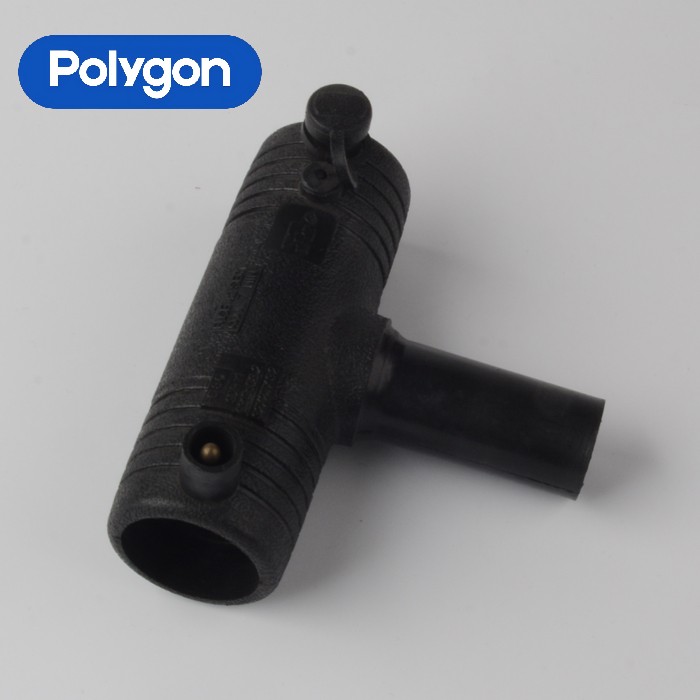

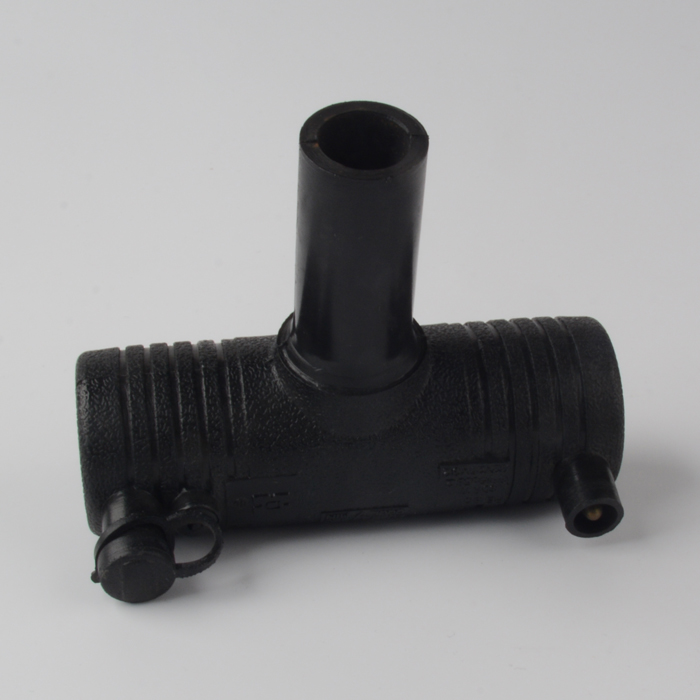

What is an HDPE Electrofusion Reducing Tee?

An HDPE electrofusion reducing tee is a type of fitting used to create a T-shaped junction in HDPE piping systems. It allows for the connection of a smaller diameter branch pipe to a larger diameter main pipe. This fitting is particularly useful in applications where fluid flow needs to be redirected or split into multiple branches.

Key Specifications

Material

Raw Material: High-Density Polyethylene (HDPE) with a minimum material designation code of PE100.

Color: Typically black or blue, with other colors available upon request.

Size Range

Diameter Range: DN32 to DN400mm (1/2 inch to 16 inches).

Common Sizes: 2 inches (50 mm), 4 inches (100 mm), 6 inches (150 mm), 8 inches (200 mm) and above.

Pressure Rating

Pressure Classes: SDR11-PN16, SDR17-PN10.

Pressure Ratings: PN16 for water and PN10 for gas.

Manufacturing Process

Process: Injection molded in one piece for precision and strength.

Standards: Conforms to ISO4427-3, EN12201-3, AS/NZS 4129, EN1555, EN ISO15494 (ISO4437-3 for gas).

Applications

HDPE electrofusion reducing tees are versatile and used in a variety of industries due to their durability and resistance to corrosion. They are ideal for:

Urban Water Supply: Ensuring reliable water distribution from main pipelines to various branches.

City Gas Supply: Distributing gas safely from main pipelines to domestic and commercial uses.

Agricultural Irrigation: Connecting main and branch pipes in irrigation systems to improve agricultural efficiency.

Building Water Supply and Drainage: Ensuring smooth water flow in building systems.

Chemical Industry: Handling various industrial fluids in chemical processing plants.

Benefits of HDPE Electrofusion Reducing Tees

High-Strength Connection

The electrofusion process creates a joint that is as strong as the pipe itself, ensuring a durable and leak-proof connection.

Corrosion Resistance

HDPE material is highly resistant to chemical corrosion, making it suitable for handling corrosive media.

Temperature Resistance

HDPE tees maintain their physical properties across a wide temperature range, making them suitable for various environmental conditions.

Easy Installation

The welding process is straightforward and does not require additional materials or fittings, simplifying the installation process.

Cost-Effective

HDPE electrofusion reducing tees offer an excellent price-to-performance ratio, making them a cost-effective solution for both small and large-scale projects.

Choosing the Right HDPE Electrofusion Reducing Tee

When selecting an HDPE electrofusion reducing tee, consider the following factors:

Size and Pressure Requirements: Ensure the tee matches the diameter and pressure requirements of your piping system.

Connection Type: Choose a tee that is suitable for electrofusion welding.

Standards and Certifications: Look for tees that meet relevant industry standards to ensure quality and reliability.

Manufacturer's Reputation: Select a reputable manufacturer to ensure high-quality products and reliable technical support.

Conclusion

HDPE electrofusion reducing tees are essential for creating reliable and durable connections in HDPE piping systems. Their strength, corrosion resistance, and ease of installation make them a preferred choice for various applications. By choosing the right HDPE electrofusion reducing tee, you can ensure the long-term success and efficiency of your piping system.

For more information or to purchase HDPE electrofusion reducing tees, contact a reputable supplier who can provide detailed specifications and support for your specific needs
