The Ultimate Guide to HDPE Butt Welding Tees
Introduction
HDPE (High-Density Polyethylene) butt welding tees are essential components in HDPE piping systems, providing a reliable and durable solution for connecting branch lines to the main pipeline. This guide will cover the specifications, applications, and benefits of HDPE butt welding tees, helping you understand why they are a preferred choice for various industries.

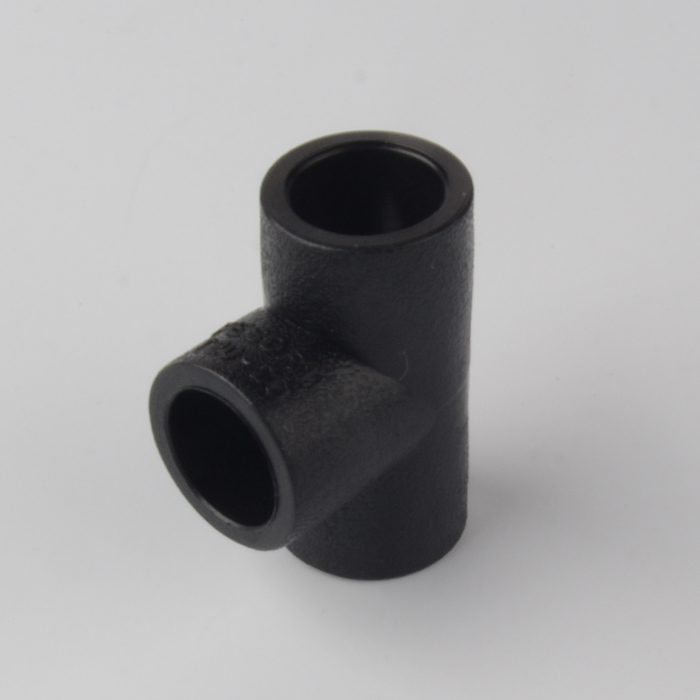

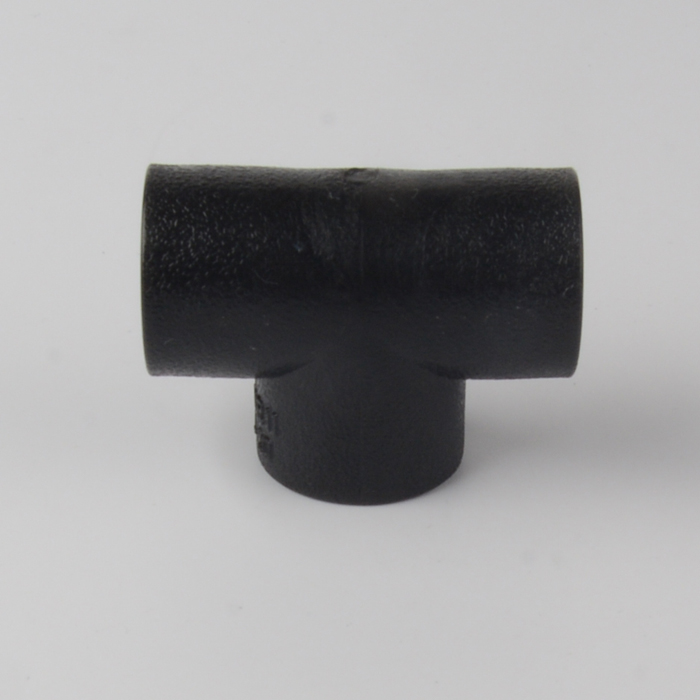

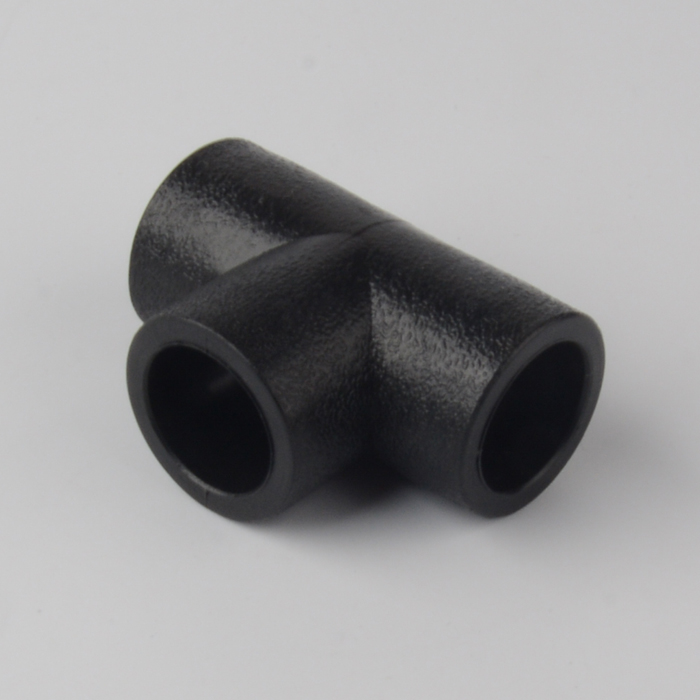

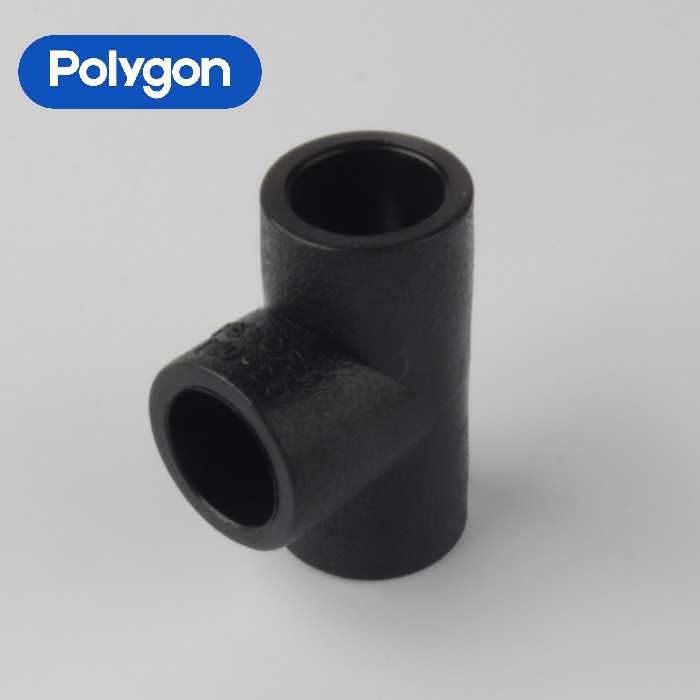

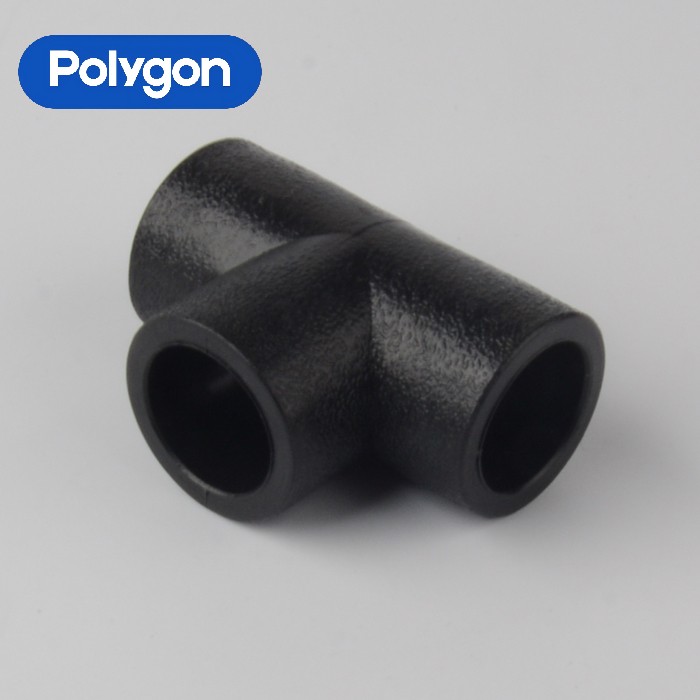

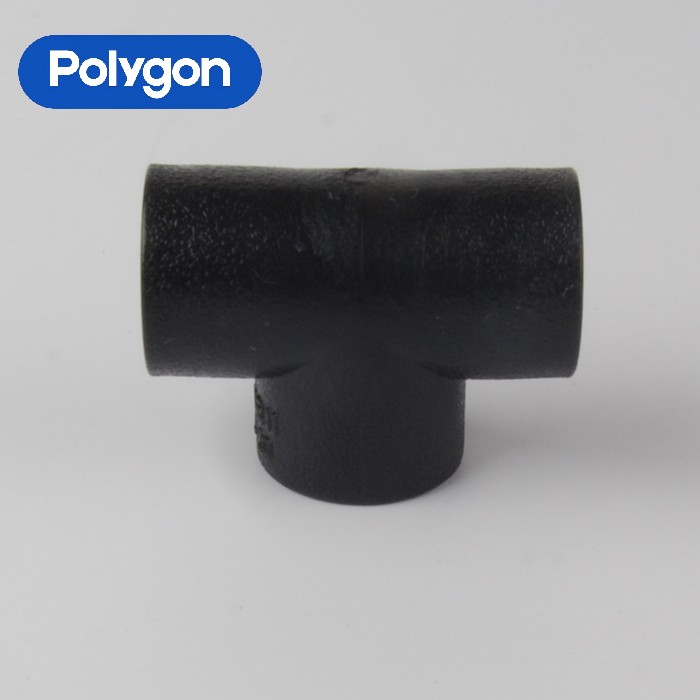

What is an HDPE Butt Welding Tee?
An HDPE butt welding tee is a specialized fitting used to connect a branch line to the main pipeline in HDPE piping systems. It creates a T-shaped joint, which is crucial for distributing flow effectively. The tee is made from high-quality HDPE material and is designed to withstand various environmental conditions and pressures.
Key Specifications
Material
Raw Material: High-Density Polyethylene (HDPE) with a minimum material designation code of PE4710.
Color: Typically black or blue.
Size Range
Diameter Range: DN20 to DN2000mm (1/2 inch to 80 inch).
Common Sizes: 2 inches (50 mm), 4 inches (100 mm), 6 inches (150 mm), 8 inches (200 mm) and above.
Pressure Rating
Pressure Classes: SDR 11, SDR 17, SDR 21, SDR 26, etc., with pressure ratings from PN10 to PN32.
Joint Type
Butt Fusion Welding: Provides a seamless connection, enhancing the structural integrity of the pipeline.
Temperature Resistance
Operating Temperature Range: -40°F to 180°F, depending on specific grades.
Applications
HDPE butt welding tees are versatile and used in a variety of industries due to their durability and resistance to corrosion. They are ideal for:
Municipal Water Supply: Ensuring reliable water distribution.
Sewage and Waste Management: Handling wastewater without corrosion.
Industrial Fluid Handling: Transporting various industrial fluids.
Agricultural Irrigation: Providing durable solutions for irrigation systems.
Gas Pipelines: Suitable for transporting compressed gases.
Benefits of HDPE Butt Welding Tees
High-Strength Connection
The butt welding process creates a joint that is as strong as the pipe itself, ensuring a durable and leak-proof connection.
Corrosion Resistance
HDPE material is highly resistant to chemical corrosion, making it suitable for handling corrosive media.
Temperature Resistance
HDPE tees maintain their physical properties across a wide temperature range, making them suitable for various environmental conditions.
Easy Installation
The welding process is straightforward and does not require additional materials or fittings, simplifying the installation process.
Cost-Effective
HDPE butt welding tees offer an excellent price-to-performance ratio, making them a cost-effective solution for both small and large-scale projects.
Choosing the Right HDPE Butt Welding Tee
When selecting an HDPE butt welding tee, consider the following factors:
Size and Pressure Requirements: Ensure the tee matches the diameter and pressure requirements of your piping system.
Connection Type: Choose a tee that is suitable for butt fusion welding.
Standards and Certifications: Look for tees that meet relevant industry standards such as ASTM F714, ASTM D3261, and ISO 21307.
Manufacturer's Reputation: Select a reputable manufacturer to ensure high-quality products and reliable technical support.
Conclusion
HDPE butt welding tees are essential for creating reliable and durable connections in HDPE piping systems. Their strength, corrosion resistance, and ease of installation make them a preferred choice for various applications. By choosing the right HDPE butt welding tee, you can ensure the long-term success and efficiency of your piping system.
For more information or to purchase HDPE butt welding tees, contact a reputable supplier who can provide detailed specifications and support for your specific needs
