PVC electrical conduit fittings, also known as "accessories," are the essential connecting components for building a complete electrical wiring system. They must match the performance characteristics of the conduit pipes (UPVC material)—specifically, insulation, flame retardancy, and corrosion resistance—to ensure the formation of a sealed, safe protective channel for wiring. Based on engineering practice and common product categories, the fitting system can be categorized into three main modules: Enclosure Fittings, Connection Fittings, and Functional/Support Fittings.
I. Enclosure Fittings (Terminal Device Housings)
Enclosures are the "containers" that house switch, socket, and lighting modules. They connect to and secure the conduit. Common types include:

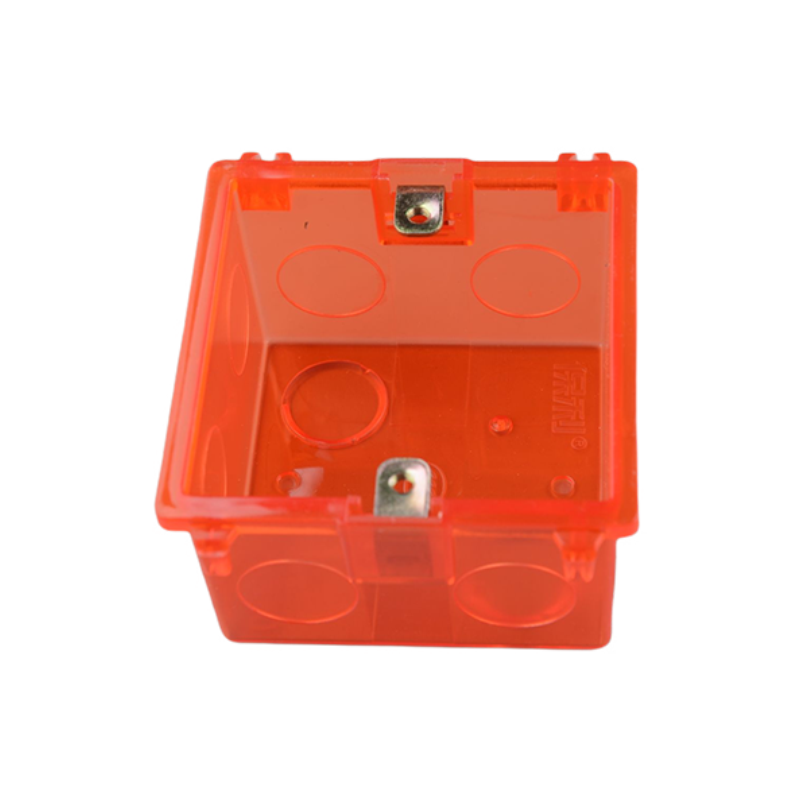

Fitting Name (Chinese) | Structure & Function | Typical Application |
High-Capacity Junction Box (Tri-Branch) | Features three directional pipe entry points (tri-branch) and a large-depth body ("high capacity"). Used for converging multiple circuits in large spaces. | Living room, dining area requiring multiple circuit branches. |
Gangable Concrete/Nail-On Box | Rectangular box that can be ganged with multiple same-spec boxes on its sides ("gangable"). Includes nail-on holes for secure mounting. | Batch installation of switches/outlets (e.g., bedside dual-control switches, kitchen outlets). |
Octagon Box (with Ears) | Octagonal box with mounting "ears" (tabs for fixing to forms/walls). A traditional flush-mount box. | Renovation projects, wiring on non-standard wall surfaces. |
118-Type 2-Gang Box | Rectangular box compatible with 118-type switch/socket plates. Has internal dividers for two side-by-side modules. | Kitchens, bathrooms for elongated socket combinations. |
II. Connection Fittings (Conduit Joining)
These are responsible for the physical connection between conduit sections and between conduit and enclosures, ensuring a continuous, sealed pathway.
Fitting Name (Chinese) | Structure & Function | Typical Application |

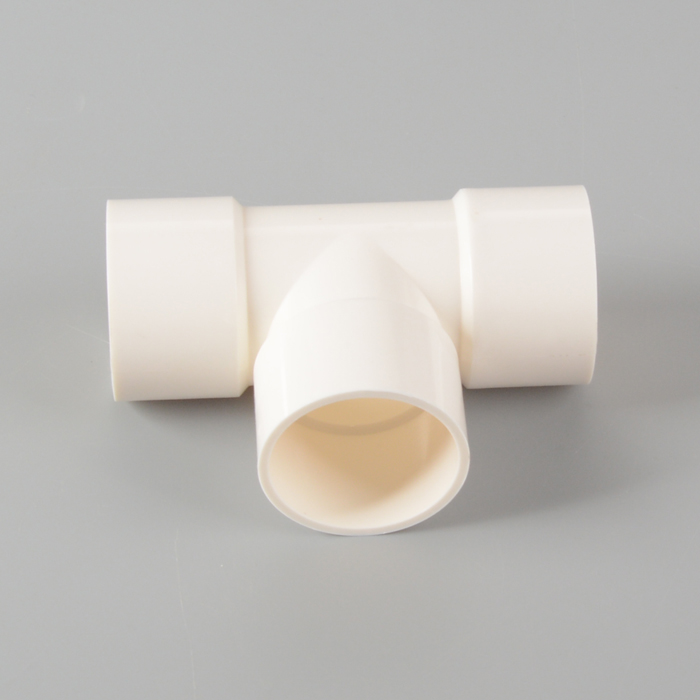

Conduit Tee (T-Connector) | Three-way fitting (one inlet, two outlets) with socket ends for solvent-welding. Used for circuit branching. | Wall corners, ceiling circuit splits. |
Standard Fittings Set | Includes: Coupling (straight connector for two conduits), Bushings/Box Connectors (connect conduit to box, smooth interior protects wire), Conduit Clips/Staples (secure conduit to surfaces). | Foundational connection and securing across all scenarios. |
III. Functional & Support Fittings
These address specific installation needs and challenges.
Fitting Name (Chinese) | Structure & Function | Typical Application |
Conduit Bending Spring (Metal) | Black metal spring, graded Light, Medium, Heavy. Prevents kinking when cold-bending smaller diameter pipes (Φ16-32mm). | Making right-angle or curved bends in small-diameter conduit (Φ16-25mm). |
PVC Solvent Cement | Specialized chemical adhesive for permanently bonding conduit to socket-type fittings. | Sealing reinforcement for all solvent-weld socket connections. |
IV. Other Key Fittings (Supplemental)
Fitting Name (Chinese) | Structure & Function | Typical Application |
90-Degree Elbow | Right-angle elbow with socket end, enables 90° turns in the conduit run. | Right-angle wiring at corners, beneath beams. |
Coupling (Straight Connector) | Straight connector for joining two conduit sections end-to-end. | Extending conduit runs, straight-line connections. |
Male & Female Adapter | One end socket (female thread), other end spigot (male thread). Transitions between conduit and other interfaces. | Transition connection between conduit and equipment/metal conduit. |
Summary
In essence, PVC electrical conduit fittings work together to form a complete wiring system: enclosures house the endpoints, connection fittings build the pathway, and functional fittings solve installation challenges. When selecting fittings, it is crucial to match their specifications (size: Φ16-50mm) and type to the conduit and application scenario (exposed/concealed, crush resistance needs). This ensures consistent insulation, flame retardancy, and mechanical performance, which is fundamental to guaranteeing overall electrical safety.
