I Product Introduction
HDPE Pipe Welding Machine are the core equipment ensuring construction quality in polyethylene pipeline systems, covering a complete range of products for pipe cutting, surface preparation, electrofusion welding, butt fusion welding, and socket fusion welding. HDPE pipe connections are primarily achieved through two processes – fusion welding and electrofusion welding – using specialized tools to fuse pipes and fittings into an integrated structure, with joint strength exceeding that of the pipe body. The products are widely used in pipeline construction and maintenance for municipal water supply and drainage, gas transmission, industrial piping, and building drainage applications. With precision cutting tools, reliable surface preparation equipment, and stable welding machines, these tools ensure the long-term safe operation of HDPE pipeline systems.
I Product Features

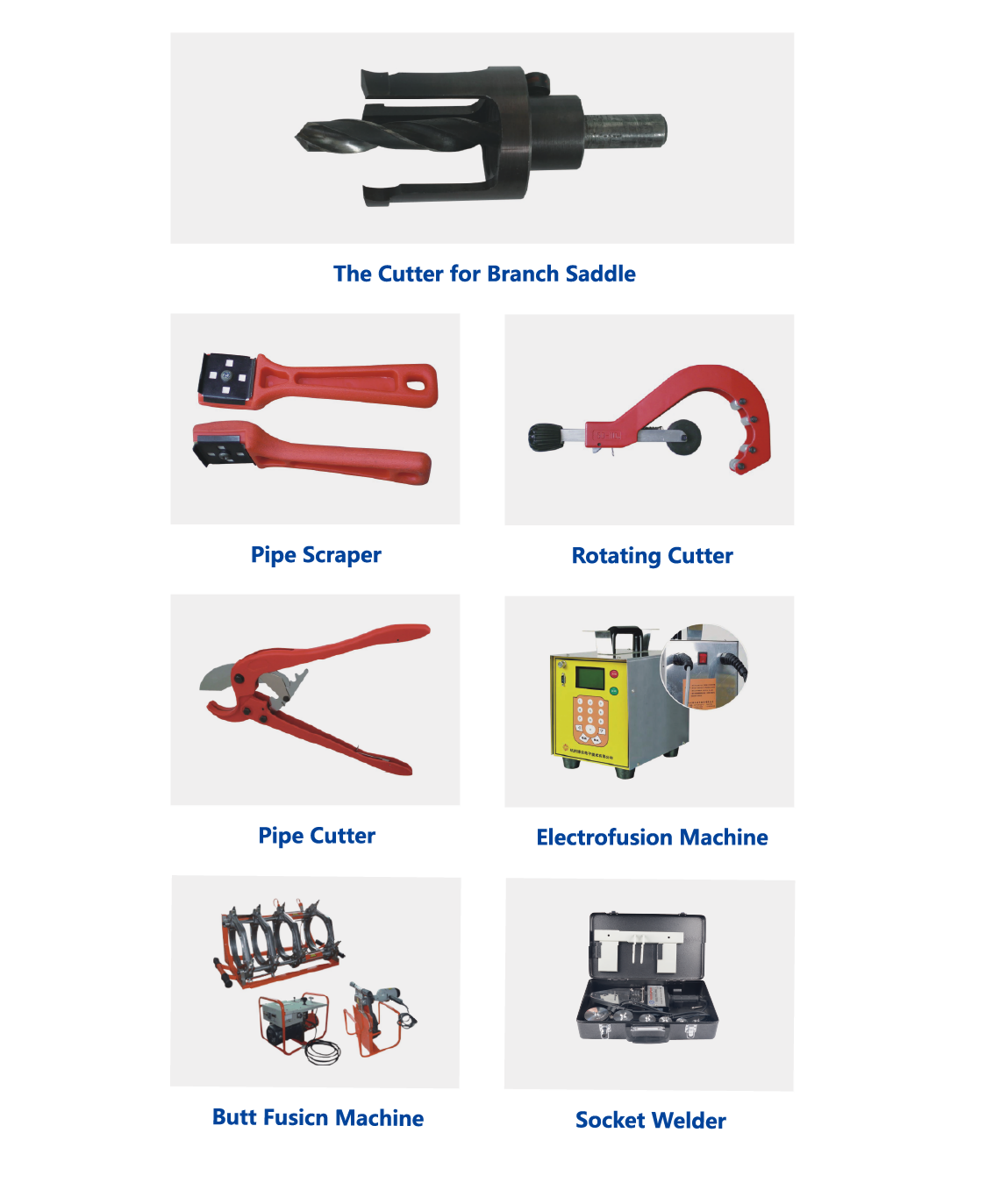

● Full-process coverage, one-stop solution: HDPE Pipe Welding Machine provides a complete construction tool chain from pipe cutting and oxide layer scraping to electrofusion welding and butt fusion welding. The product range includes pipe cutters, rotating cutters, pipe scrapers, branch saddle cutters, electrofusion welding machines, butt fusion welding machines, socket welding machines, and other comprehensive products.
● Precise temperature control, reliable welding quality: Heating plates utilize independent electronic temperature control systems with digital displays for accurate and intuitive readings, with temperature deviation controlled within ±3°C. Ensures uniform melting of pipe end faces within the optimal temperature range of 200°C–230°C, producing standard beads and achieving joint strength exceeding 120% of the pipe body.
● Sharp cutting, smooth end faces: Dedicated pipe cutters and rotating cutters use high-quality alloy blades, producing smooth, burr-free pipe end faces that provide an excellent foundation for subsequent welding. Cutting large-diameter pipes is effortless and efficient.
● Professional surface preparation, welding assurance: Pipe scrapers are specifically designed to remove oxide layers from pipe spigot surfaces, with scraping thickness of 0.1–0.2mm, ensuring electrofusion welding quality. Branch saddle cutters precisely cut openings for branch saddle installations.
● Safety protection, worry-free operation: Electric milling tools are equipped with safety limit switches to prevent accidental startup. Drop impact cushioning design adapts to complex construction site environments.
I Product Specification
Tool Type | Application Scenario |
Pipe Cutter | Pipe cutting, length trimming |
Rotating Cutter | Small to medium diameter pipe cutting |
Pipe Scraper | Surface preparation before electrofusion welding |
Branch Saddle Cutter | Opening preparation for branch saddle fitting installation |
Electrofusion Welding Machine | Electrofusion fitting welding, confined spaces |
Butt Fusion Welding Machine | Straight pipe butt welding |
Socket Welding Machine | Workshop prefabrication, socket welding |
I Application
● Municipal water supply network construction: HDPE Pipe Welding Machine are used for on-site welding of urban water supply mains and distribution networks. Butt fusion welding machines are suitable for large-diameter main pipe connections, while pipe cutters and scrapers are used for pre-welding preparation.
● Gas pipeline projects: Specialized welding equipment for buried gas pipelines. Electrofusion welding machines ensure absolute safety in gas transmission, with pipe scrapers rigorously removing oxide layers.
● Municipal drainage and sewage systems: Used for pipe connections in stormwater and sewer networks, with electrofusion and fusion equipment used in combination. Rotating cutters efficiently cut pipes.
● Building drainage systems: Suitable for installation of indoor and outdoor HDPE drainage pipeline systems. Electrofusion welding machines are used for same-floor drainage fitting connections, while socket welding machines are used for workshop prefabrication.
● Pipeline emergency repair: Pipe cutters are used to remove damaged pipe sections, scrapers prepare welding surfaces, and electrofusion welding machines enable rapid repairs.
● Workshop pipe prefabrication: Socket welding machines are used for batch prefabrication of pipes and fittings, improving on-site construction efficiency.
I FAQ
1. What basic tools are needed for HDPE pipe construction?
A complete HDPE pipe construction tool chain includes: pipe cutters/rotating cutters (pipe cutting), pipe scrapers (oxide layer removal), electrofusion welding machines (electrofusion fitting welding), butt fusion welding machines (straight pipe butt welding), socket welding machines (small-diameter socket welding), and branch saddle cutters (opening preparation for branch saddle fittings). Select the appropriate equipment based on project requirements.

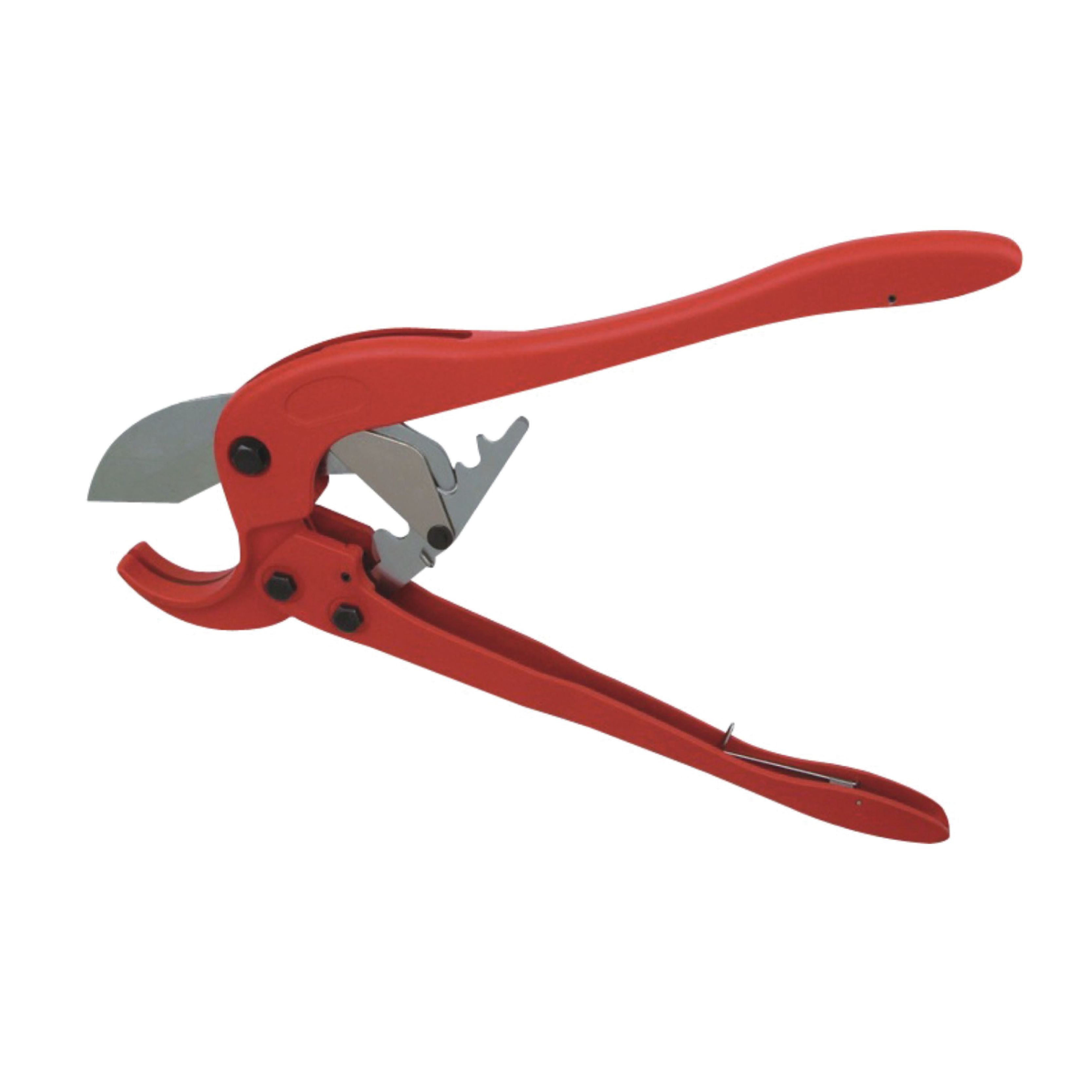

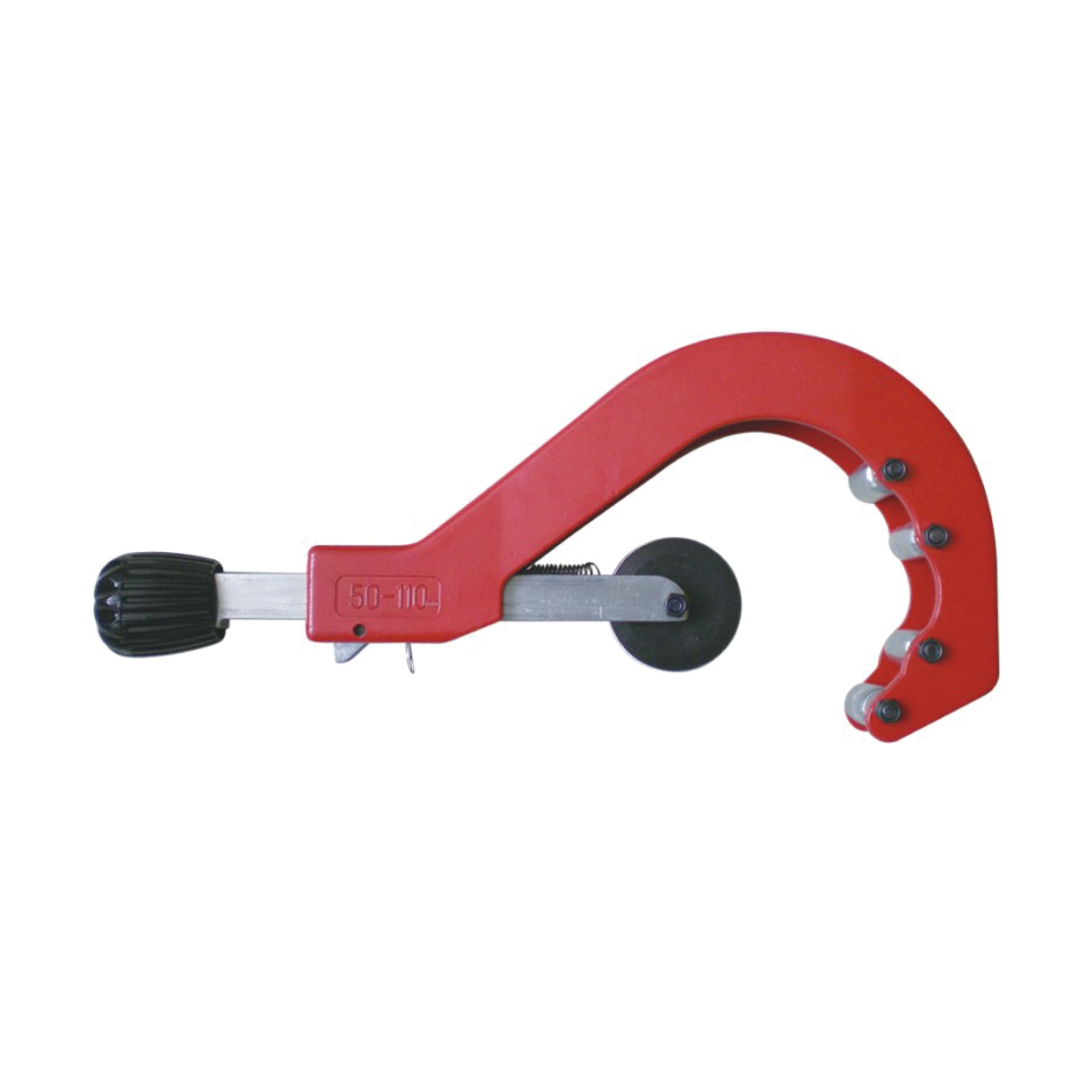

3. What is the difference between a pipe cutter and a rotating cutter, and how should they be selected?
Pipe cutters are suitable for small to medium diameter pipes (dn20–dn200), offering simple operation and smooth cuts. Rotating cutters are suitable for larger diameters (dn50–dn315), with rotating cutting providing greater efficiency with less effort. Selection is based on pipe diameter and site conditions. Both tools ensure smooth, perpendicular cuts, providing an excellent foundation for subsequent welding.

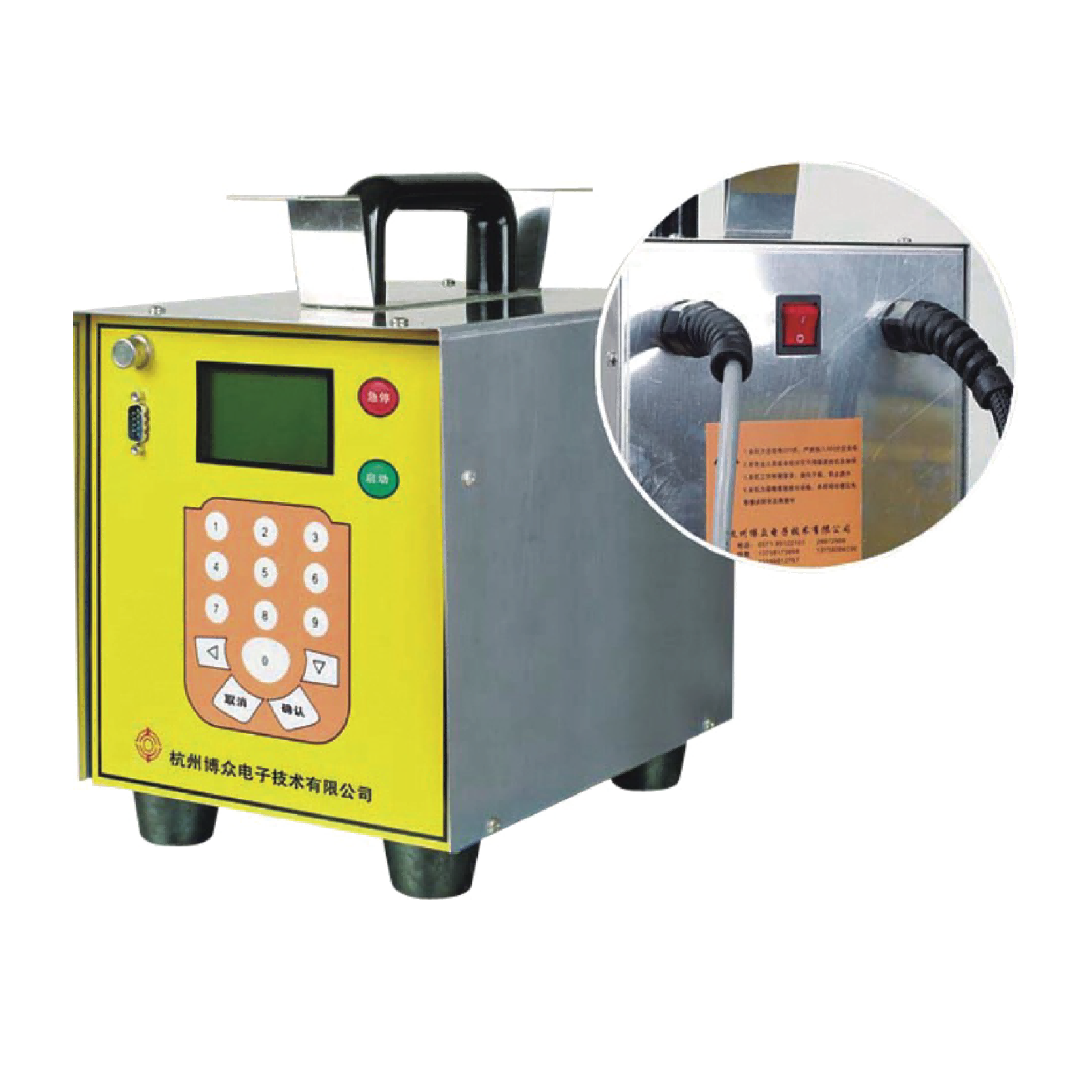

4. How is an electrofusion welding machine operated? Are parameter settings required?
Modern electrofusion welding machines are simple to operate: ① Use a pipe scraper to remove the oxide layer from the pipe; ② Insert the pipe into the fitting to the marked depth; ③ Connect the welding machine cables and scan the fitting barcode; ④ The machine automatically reads and sets the welding voltage and time; ⑤ Start welding, and allow cooling for the specified time after completion. No manual parameter setting is required, eliminating human error.
5. What is the purpose of a branch saddle cutter?
A branch saddle cutter is used to cut openings in main pipelines for installing branch saddle fittings. When a branch connection is needed on an existing HDPE pipeline, a branch saddle fitting is used in conjunction with electrofusion welding, requiring a precisely cut opening in the main pipe that matches the branch saddle fitting. This tool ensures accurate opening dimensions and smooth edges.
6. What scenarios are socket welding machines suitable for?
Socket welding machines are primarily suitable for socket welding of small-diameter HDPE pipes (dn25–dn110), commonly used in workshop prefabrication, building drainage systems, and same-floor drainage fitting connections. By heating the socket and spigot surfaces and inserting them after melting, a connection is formed with high efficiency and stable quality.

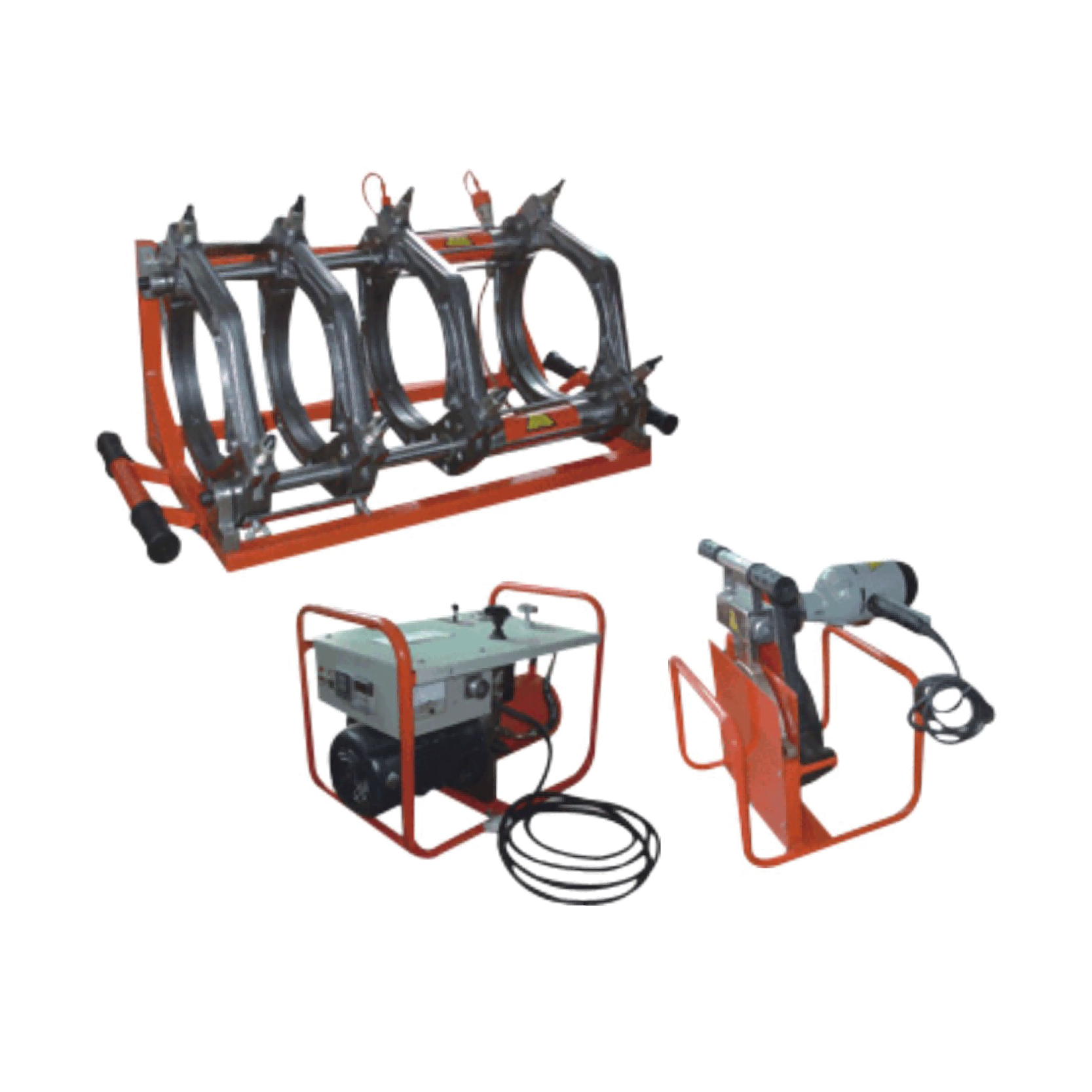

7. Butt fusion welding machines are available in manual and hydraulic types. How should they be selected?
Manual butt fusion welding machines are suitable for small to medium diameters (dn63–dn200), providing pressure through a mechanical crank handle. They are lightweight, flexible, and cost-effective. Hydraulic butt fusion welding machines are suitable for large diameters (dn250 and above), with hydraulic systems controlling the butt pressure, providing accurate pressure and stable operation – ideal for main pipeline construction. Selection is based on pipe diameter and project scale.
