PPRCT Pipe

| Product Description

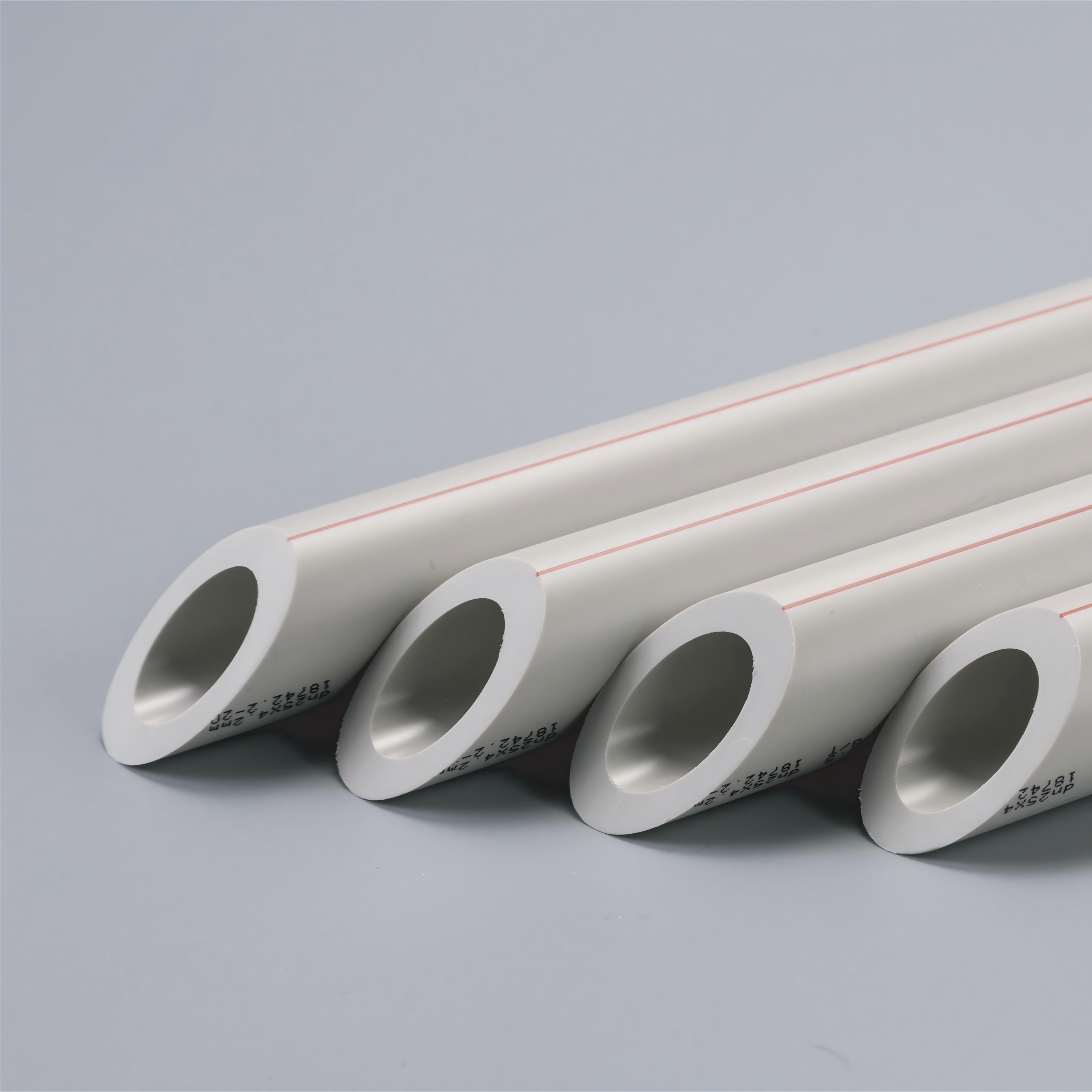

PPRCT Pipe is a high-performance piping system manufactured from advanced β-crystal modified polypropylene random copolymer (PP-RCT). Compared to traditional PPR pipes, PPRCT Pipe offers superior high-temperature resistance, enhanced pressure tolerance, and extended service life. Its unique molecular structure ensures dimensional stability and impact resistance under extreme operating conditions, making PPRCT Pipe an ideal choice for modern building hot/cold water systems, industrial fluid transportation, and HVAC projects, providing you with a safe, efficient, and environmentally friendly piping solution.

| Product Feature

● Higher pressure resistance and flow capacity: The long-term static pressure strength of PPRCT pipes is higher than that of traditional PPR pipes. They can withstand higher working pressure, have a higher safety factor, and have a longer service life. They are especially suitable for water supply systems in high-rise buildings. Under the same pressure level, the pipe wall can be designed to be thinner, thereby increasing the inner diameter and enhancing the water flow rate compared to ordinary PPR pipes.

● Excellent temperature resistance: It can operate stably for a long time at temperatures up to 95°C, perfectly meeting the strict requirements of hot water supply and heating systems.

● Long service life: The designed service life can reach over 50 years.

● Easy installation: Lightweight, easy to transport and handle. Adopting reliable hot-melt connection technology, the connection points form a complete integrated pipeline.

| Technical Data

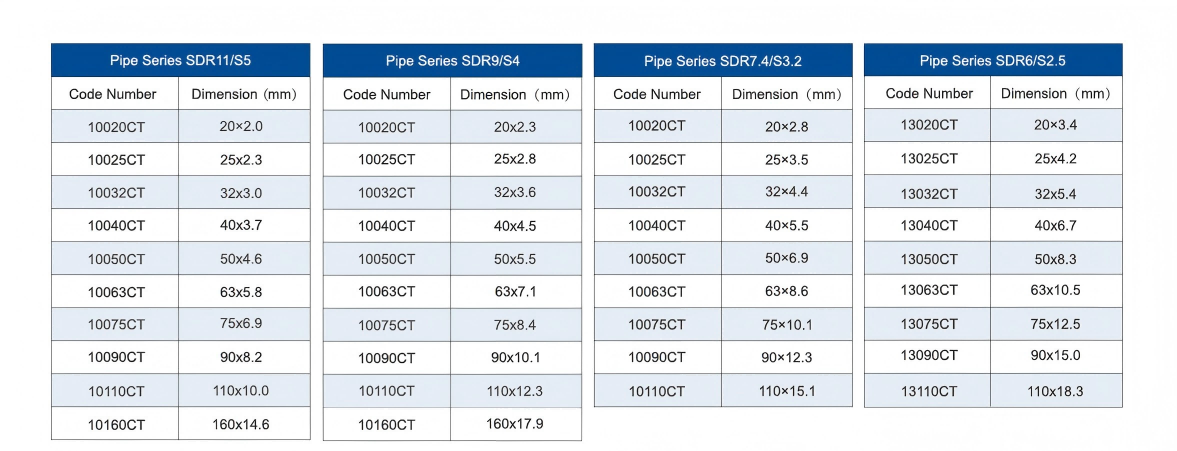

| Product Specification

| Application

● Residential & Commercial Buildings: PPRCT Pipe is widely used in hot/cold water supply, central heating, and underfloor heating systems for residences, hotels, hospitals, and office buildings.

● Industrial Applications: PPRCT Pipe is suitable for industrial cooling water circulation systems.

● Public Facilities: PPRCT Pipe is used in drinking water systems, hot water supply, and central air conditioning pipelines for schools, stadiums, airports, and other large public venues.

● Agricultural & Horticultural: PPRCT Pipe is applied in greenhouse heating systems, temperature control, and irrigation water delivery.

I Comparison with Other Materials

● PPRCT Pipe vs. Traditional PPR Pipe: Under identical operating conditions, PPRCT Pipe demonstrates higher pressure resistance, superior high-temperature stability, deformation resistance, and extended service life.

● PPRCT Pipe vs. Metal Pipes (Galvanized/Copper): PPRCT Pipe completely eliminates rust and corrosion issues associated with metal pipes, preventing scaling and effectively ensuring water quality. Additionally, PPRCT Pipe offers excellent thermal insulation with minimal heat loss, and installation costs significantly lower than metal pipes.

● PPRCT Pipe vs. PVC-U Pipe: PVC-U pipes are primarily used for cold water drainage, while PPRCT Pipe serves not only for water supply but also withstands 95°C high temperatures, making it suitable for hot water and heating systems. PPRCT Pipe offers higher material toughness and superior impact resistance compared to PVC-U.

I FAQ

1. What is the maximum pressure resistance of PPRCT Pipe?

● Answer: The pressure rating of PPRCT Pipe depends on its wall thickness (S series). Our standard PN25 grade PPRCT Pipe achieves working pressure up to 2.5MPa at 20°C. For higher pressure requirements, we can provide customized PPRCT Pipe with specific specifications. For detailed pressure parameters of specific PPRCT Pipe specifications, please contact our technical team.

2. What is the main difference between PPRCT Pipe and traditional PPR pipe?

● Answer: The primary difference lies in the material’s microstructure. PPRCT Pipe utilizes modification technology that maintains more stable crystal structure under heat and pressure, endowing it with higher temperature and pressure resistance and stronger creep resistance compared to traditional PPR pipes. Simply put, under identical conditions, PPRCT Pipe offers longer service life and higher safety factors.

3. Does PPRCT Pipe installation require special tools?

● Answer: No special tools are required for PPRCT Pipe installation. It uses the same heat fusion connection method as traditional PPR pipes, utilizing standard fusion welding equipment. Installers can easily master PPRCT Pipe installation with minimal familiarization. Our technical manuals and on-site guidance ensure you quickly acquire proper PPRCT Pipe installation methods.

4. Does PPRCT Pipe comply with drinking water hygiene standards?

● Answer: Yes, our PPRCT Pipe fully complies with drinking water hygiene standards. Its raw material is environmentally friendly polypropylene, with no heavy metal stabilizers added during production or use. PPRCT Pipe is non-toxic and odorless, having passed authoritative national inspections, ensuring safe and pure water quality during delivery.

5. What are your delivery times?

● Answer:Stock items typically ship within 7 working days of order receipt. Custom PPR Fiber pipe orders depend on specific specifications and quantities, generally completing production and shipping within 15-25 working days.
