| Product Description

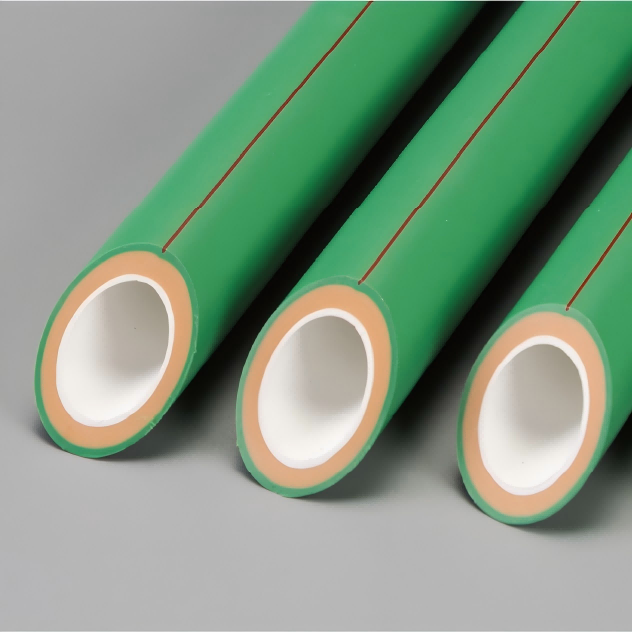

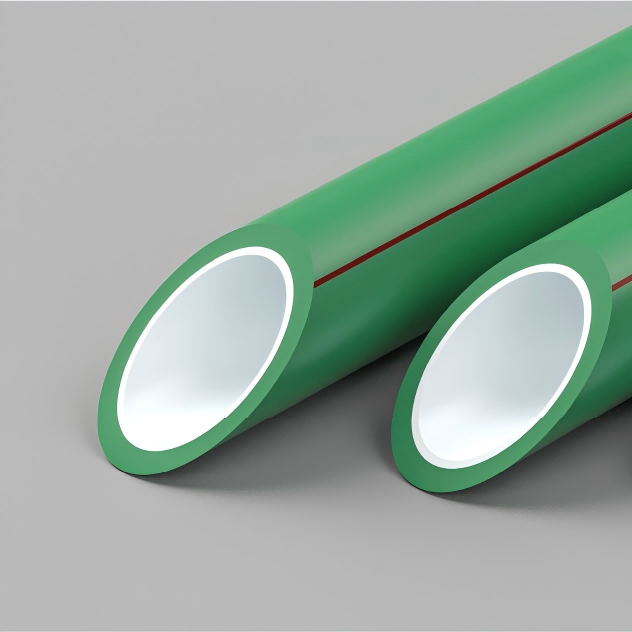

PPR pipe (Polypropylene Random Copolymer Pipe) is manufactured from type III polypropylene through extrusion molding . Featuring high-temperature resistance (up to 95°C), excellent pressure tolerance, health safety, and leak-proof fusion connections, these pipes offer a service life of over 50 years. PPR pipes are widely used in building hot/cold water systems, purified water delivery, heating, and central air conditioning.
| Product Features
● Health & Environmental Safety: Made from eco-friendly polypropylene with no heavy metal additives, inhibits bacterial growth, safe for drinking water delivery.
● Leak-Proof Fusion Connection: Heat fusion creates an integrated joint between pipe and fitting, avoiding toxic adhesives.
● High Temperature & Pressure Resistance: Long-term operating temperature up to 70°C, momentary temperature up to 95°C, meeting demanding hot water requirements.
● Low Flow Resistance: Smooth inner walls prevent scaling, reducing flow resistance with 30% higher flow capacity than metal pipes of same diameter.
● Extended Service Life: Manufactured to standards, providing over 50 years of reliable performance under normal conditions.
● Excellent Thermal Insulation: Low thermal conductivity provides significant energy savings for hot water systems.
| Technical Data
Parameter | Specification |
Material | Polypropylene Random Copolymer (PP-R), 100% virgin material |
Temperature Range | Long-term: ≤70°C; Momentary: ≤95°C |
Pipe Sizes | Nominal outer diameter dn20mm to dn160mm |
Standard Length | 4m / Custom lengths available |
Pipe Series | S5/S4 (cold water, blue stripe); S3.2/S2.5 (hot water, red stripe) |
Connection Method | Socket heat fusion (with dedicated fusion tool) |
Standard Compliance | ISO15874 |

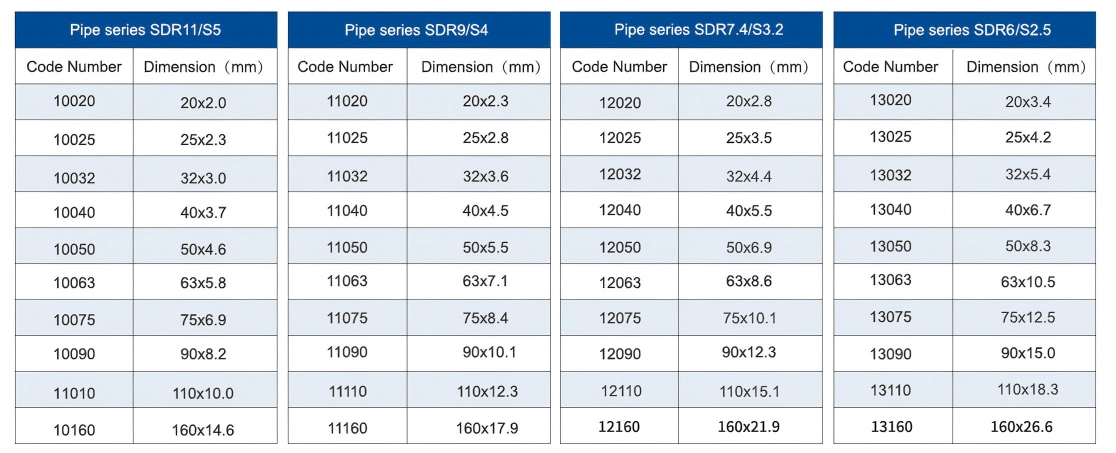

| Product Specification
Pipe series SDR11/S5 | Pipe series SDR9/S4 | Pipe series SDR7.4/S3.2 | Pipe series SDR6/S2.5 |
Code Number | Dimension (mm) | Code Number | Dimension (mm) | Code Number | Dimension (mm) | Code Number | Dimension (mm) |
10020 | 20x2.0 | 11020 | 20x2.3 | 12020 | 20x2.8 | 13020 | 20x3.4 |
10025 | 25x2.3 | 11025 | 25x2.8 | 12025 | 25x3.5 | 13025 | 25x4.2 |
10032 | 32x3.0 | 11032 | 32x3.6 | 12032 | 32x4.4 | 13032 | 32x5.4 |
10040 | 40x3.7 | 11040 | 40x4.5 | 12040 | 40x5.5 | 13040 | 40x6.7 |
10050 | 50x4.6 | 11050 | 50x5.5 | 12050 | 50x6.9 | 13050 | 50x8.3 |
10063 | 63x5.8 | 11063 | 63x7.1 | 12063 | 63x8.6 | 13063 | 63x10.5 |
10075 | 75x6.9 | 11075 | 75x8.4 | 12075 | 75x10.1 | 13075 | 75x12.5 |
10090 | 90x8.2 | 11090 | 90x10.1 | 12090 | 90x12.3 | 13090 | 90x15.0 |
11010 | 110x10.0 | 11110 | 110x12.3 | 12110 | 110x15.1 | 13110 | 110x18.3 |
10160 | 160x14.6 | 11160 | 160x17.9 | 12160 | 160x21.9 | 13160 | 160x26.6 |
| Application
● Building Hot/Cold Water Systems: Residential, apartment, villa, hotel water supply and heating systems .
● Pure Water Systems: Drinking water, food/beverage processing, pharmaceutical process water lines .
● Central Air Conditioning: HVAC water systems, fan coil unit connections .
● Agricultural Irrigation: Greenhouse, horticulture, farm water supply lines .
● Solar Energy Systems: Solar water heater piping connections .
| FAQ
1. What do the S5, S4, S3.2 markings on PPR pipes mean?
● Answer: These are pipe series designations indicating wall thickness. S5 and S4 are cold water pipes (thinner wall, blue stripe); S3.2 and S2.5 are hot water pipes (thicker wall, red stripe) . For hot water systems, S3.2 or higher series must be used.
3. How do you check for leaks after PPR pipe installation?
● Answer: Conduct a pressure test: Seal all outlets, slowly fill with water to purge air, pressurize to test level (0.8-1.0MPa), and hold for 30 minutes. If pressure drop ≤0.05MPa with no visible leaks at joints, the system passes.
5. What are your delivery time for PPR pipes?
● Answer: Stock items ship within 7 working days; bulk orders in 15-25 working days depending on quantity. Volume discounts available—contact us for quotes.
