Understanding the PVC Flat Pipe Series: The Essential Flat 90° Elbow
In the realm of construction and home improvement, PVC fittings play a crucial role in ensuring the integrity and functionality of plumbing systems. Among these, the PVC Flat Pipe Series, particularly the Flat 90° Elbow, stands out for its versatility and efficiency. This article delves into the specifics of the PVC Flat Pipe Series-Flat 90° Elbow, exploring its applications, benefits, and why it's a preferred choice for many professionals.

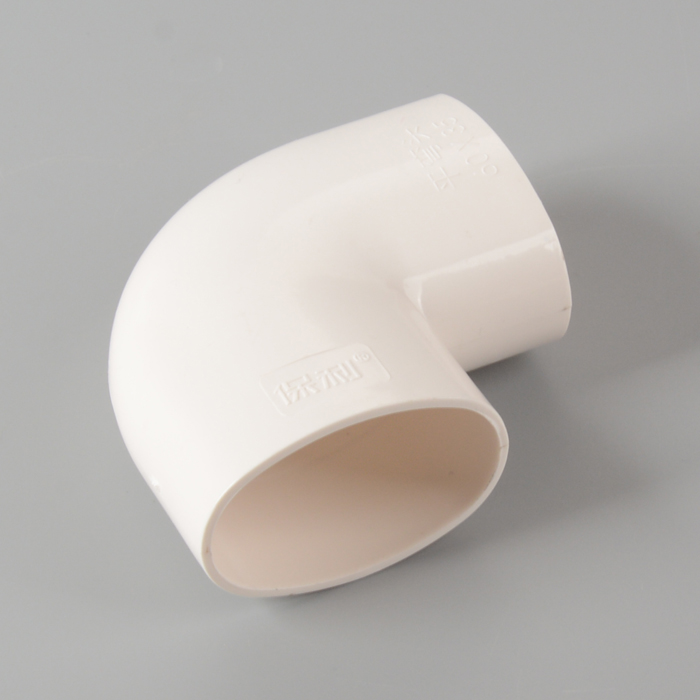

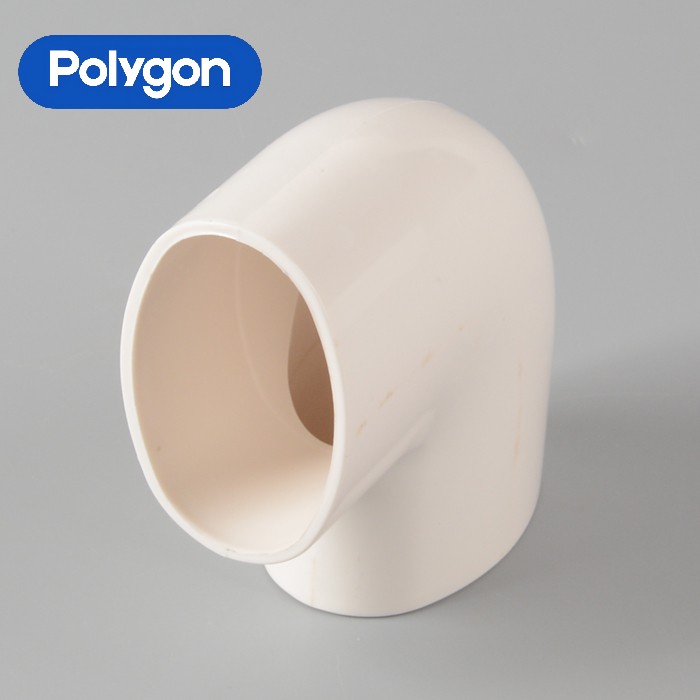

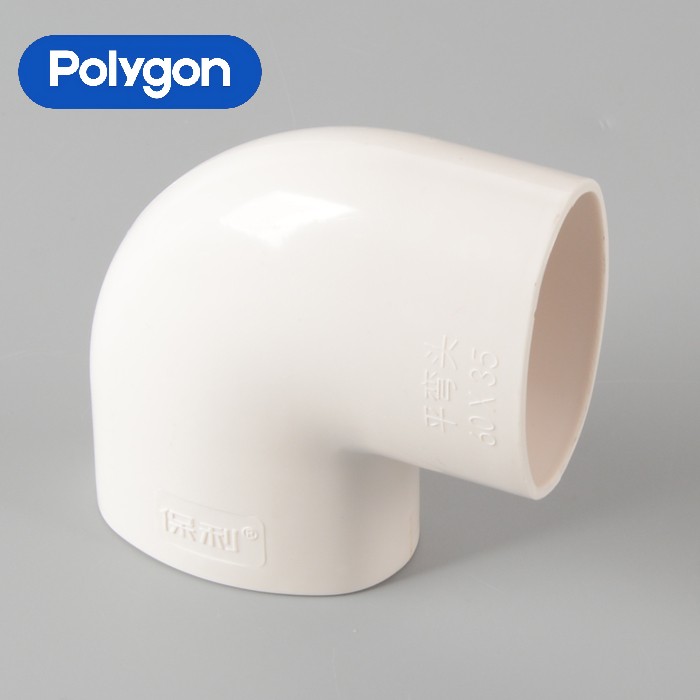

What is a PVC Flat 90° Elbow?
A PVC Flat 90° Elbow is a type of pipe fitting that allows for a 90-degree turn in the direction of a pipe run. This fitting is essential in systems where a change in direction is required, such as in plumbing, HVAC systems, and various industrial applications. The "flat" aspect refers to its compact design, making it ideal for installations where space is a constraint.
Key Features of PVC Flat 90° Elbow
· Material: Made from high-quality polyvinyl chloride (PVC), these elbows are known for their durability and resistance to corrosion.
· Design: The flat design ensures a low profile, making it suitable for installations in tight spaces.
· Versatility: Used in a wide range of applications, from residential plumbing to industrial ductwork.
· Size Variability: Available in various sizes to accommodate different pipe diameters and project requirements.
Applications of PVC Flat 90° Elbow
Residential Plumbing
In residential settings, PVC Flat 90° Elbows are commonly used in plumbing systems to navigate around obstacles or to connect pipes at corners. Their corrosion-resistant properties make them ideal for long-term use in water supply lines.
HVAC Systems
In HVAC systems, these elbows facilitate the smooth flow of air by allowing ductwork to bend around corners without significant loss of pressure or airflow. This is crucial in maintaining the efficiency of heating and cooling systems.
Industrial Applications
Industries often use PVC Flat 90° Elbows in duct systems to handle exhausts, fumes, and particulates. Their ability to withstand harsh chemicals and temperature fluctuations makes them suitable for challenging environments.
Benefits of Using PVC Flat 90° Elbow
Durability and Longevity
PVC is renowned for its robustness and resistance to wear and tear. This ensures that fittings like the Flat 90° Elbow have a long service life, even in demanding conditions.
Cost-Effectiveness
Compared to metal fittings, PVC options are more affordable, reducing the overall cost of projects without compromising on quality or performance.
Ease of Installation
The lightweight nature of PVC makes it easy to handle and install, reducing labor costs and time. Additionally, the flat design allows for quick and secure connections.
Environmental Resistance
PVC Flat 90° Elbows are resistant to a wide range of chemicals and environmental factors, including UV radiation, ensuring they perform well in outdoor applications.
Comparing PVC Flat 90° Elbow with Other Elbows
PVC Duct 90 Degree Elbows
While both are used to change the direction of pipe runs, PVC Duct 90 Degree Elbows are specifically designed for ductwork and ventilation systems. They are engineered to handle airflow with minimal friction and pressure loss, making them ideal for industrial HVAC systems.
Wiremold PVC Raceway 90° Flat Elbow
This type of elbow is typically used in electrical applications, providing a channel for wires and cables. The Wiremold version is designed for low-profile installations, similar to the PVC Flat 90° Elbow, but with a focus on electrical systems.
How to Choose the Right PVC Flat 90° Elbow
When selecting a PVC Flat 90° Elbow, consider the following factors:
· Size: Ensure the elbow fits the pipe diameter you are working with.
· Application: Determine whether the elbow will be used in plumbing, HVAC, or industrial settings, as this will influence the required specifications.
· Environmental Conditions: Consider the exposure to chemicals, temperature, and UV light to select a fitting that can withstand these conditions.
Installation Tips for PVC Flat 90° Elbow
1. Preparation: Clean the pipe ends and the inside of the elbow to ensure a secure fit.
2. Measurement: Measure accurately to cut the pipe to the correct length for the elbow fitting.
3. Joining: Use PVC cement to join the pipe and elbow, ensuring a watertight seal.
4. Curing: Allow adequate time for the cement to cure before testing the system.
Conclusion
The PVC Flat Pipe Series-Flat 90° Elbow is an indispensable component in various piping systems, offering durability, cost-effectiveness, and ease of installation. Whether you're working on residential plumbing, HVAC systems, or industrial ductwork, understanding the features and benefits of these fittings will help you make informed decisions for your projects.
