The Ultimate Guide to PVC-U Fittings for Drainage: Embedded Coupler Solutions
In the realm of modern plumbing and drainage systems, PVC-U (unplasticized polyvinyl chloride) fittings have emerged as a staple due to their durability, cost-effectiveness, and ease of installation. Among these, the embedded coupler for drainage systems stands out as an essential component. This article delves into the intricacies of PVC-U fittings, focusing on the embedded coupler, to provide a comprehensive understanding of its applications, benefits, and installation process.
Understanding PVC-U Fittings for Drainage
PVC-U fittings are integral to drainage systems, offering a robust solution for managing waste and rainwater efficiently. These fittings are renowned for their high flow capacity, corrosion resistance, and long service life. The smooth interior walls of PVC-U pipes reduce friction, ensuring a high volume of flow with minimal resistance. This feature is particularly beneficial in drainage systems where efficient water flow is crucial.
Key Benefits of PVC-U Drainage Fittings
1. Corrosion Resistance: Unlike metal pipes, PVC-U fittings are immune to electrochemical reactions, making them resistant to acids, bases, and salts.
2. Lightweight and Easy Installation: The lightweight nature of PVC-U fittings reduces transportation and installation costs. They are typically installed using solvent cement or gasketed joints, simplifying the process.
3. Durability: With a potential service life exceeding 50 years, PVC-U fittings are a long-term investment for any drainage system.
4. Environmental Friendliness: PVC-U fittings are recyclable, contributing to sustainable construction practices.
The Role of Embedded Couplers in Drainage Systems

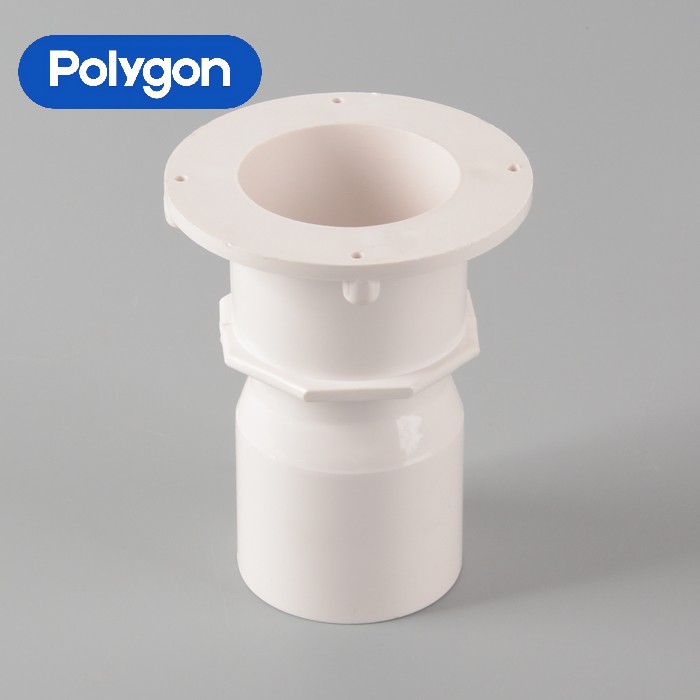

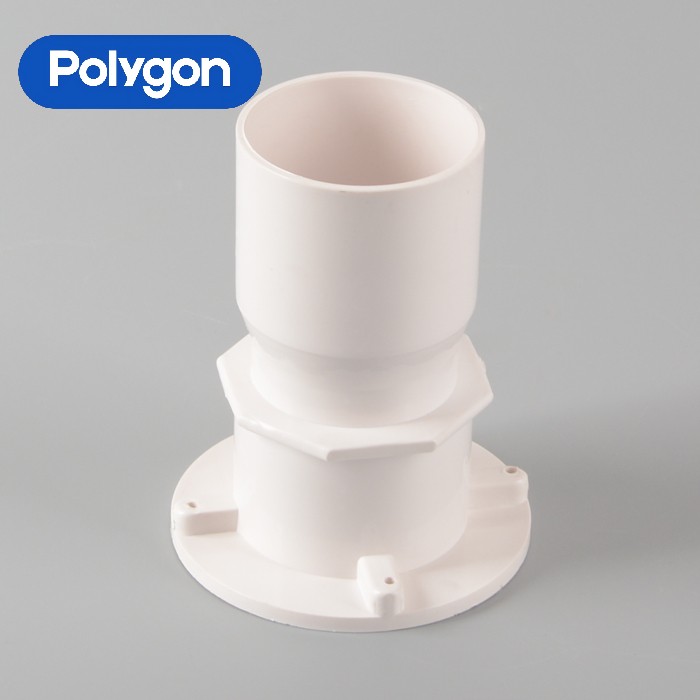

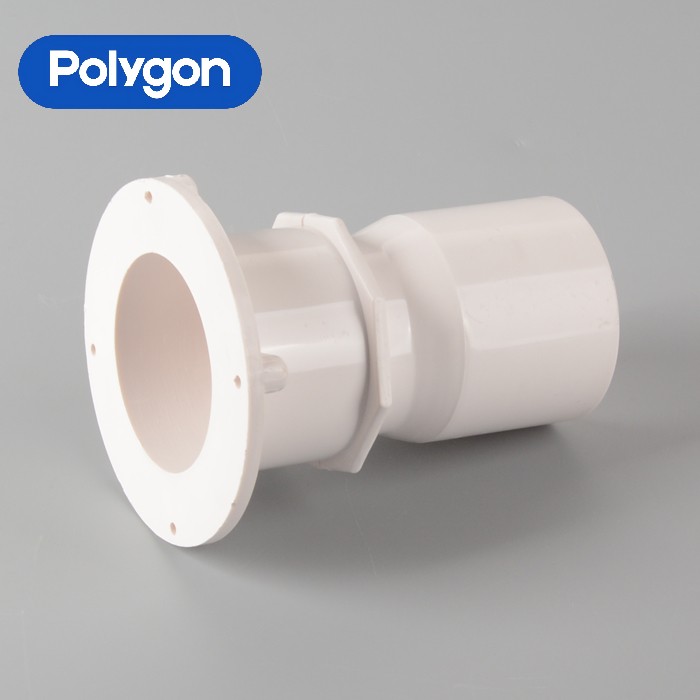

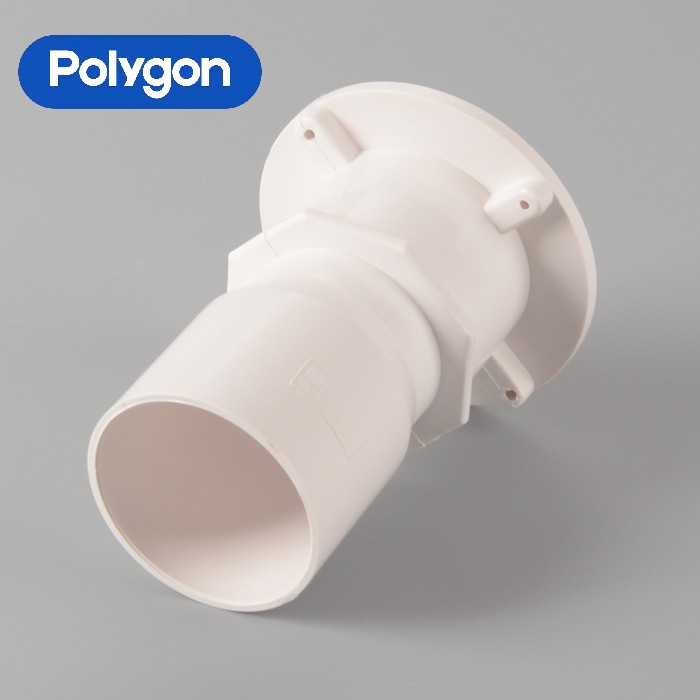

Embedded couplers, specifically designed for PVC-U drainage systems, play a crucial role in connecting pipes securely. These couplers are often double-socketed, allowing for the seamless joining of plain-ended drainage pipes. A central stop within the coupler ensures proper insertion depth, while EPDM rubber seals at both ends guarantee a watertight connection.
Features of Embedded Couplers
· Central Stop: Helps gauge insertion depth and prevents the coupler from sliding along the pipe.
· EPDM Rubber Seals: Ensure airtight and watertight connections, critical for preventing leaks.
· Compatibility: Designed to fit all 110mm PVC-U systems manufactured to BS EN 1401 or BS EN 13476-2 standards.
· Durability: Made from impact-resistant materials, these couplers withstand harsh environmental conditions.
Installation Guide for PVC-U Embedded Couplers
Installing PVC-U embedded couplers requires precision to ensure a secure and leak-free connection. Here’s a step-by-step guide to help you through the process:
1. Preparation: Begin by chamfering the ends of the pipes to be joined. This step is crucial for smooth insertion into the coupler.
2. Lubrication: Apply silicone spray or grease to the pipe ends. This reduces friction and aids in creating a tight seal.
3. Insertion: Insert the pipe into the coupler until it reaches the central stop. This ensures the correct insertion depth.
4. Adjustment: Pull back the pipe approximately 10mm to allow for ground movement, which can occur due to temperature changes or soil settling.
5. Inspection: Check the connection for any visible gaps or misalignments. A proper fit is essential for optimal performance.
Advantages of Using PVC-U Embedded Couplers
The use of embedded couplers in drainage systems offers several advantages:
· Ease of Maintenance: Once installed, these couplers require minimal maintenance, reducing long-term costs.
· Flexibility: Suitable for use in conjunction with inspection chambers or soakaway crates, providing versatility in system design.
· Resilience: Withstand harsh treatment and environmental conditions, ensuring longevity.
Comparing PVC-U with Traditional Drainage Materials
When compared to traditional materials like cast iron, PVC-U fittings offer several distinct advantages:
· Weight: PVC-U is significantly lighter, making it easier to handle and install.
· Cost: Generally more affordable than metal alternatives, reducing overall project expenses.
· Corrosion Resistance: Unlike metal pipes, PVC-U does not corrode, ensuring a longer lifespan.
Conclusion: Embracing PVC-U for Modern Drainage Solutions
PVC-U fittings, particularly embedded couplers, represent a modern solution for efficient and reliable drainage systems. Their durability, ease of installation, and environmental benefits make them an ideal choice for residential and commercial projects alike. By understanding the features and installation process of these fittings, you can ensure a robust and long-lasting drainage system.
