Understanding PVC-U Fittings for Drainage: The Role of Pipe Clamps with Nails

In the realm of plumbing and drainage systems, efficiency, durability, and ease of installation are paramount. One of the standout materials in this field is PVC-U, or unplasticized polyvinyl chloride, which offers a range of benefits for drainage applications. Among the various components used in PVC-U drainage systems, pipe clamps with nails play an essential role. This article delves into the specifications, advantages, and installation methods of PVC-U fittings for drainage, with a particular focus on the pipe clamp with nail.

What Are PVC-U Fittings for Drainage?

PVC-U fittings are integral components of drainage systems, designed to connect pipes and ensure a seamless flow of wastewater. These fittings are made from unplasticized polyvinyl chloride, a material known for its robustness and resistance to corrosion. PVC-U fittings are widely used in residential, commercial, and industrial drainage systems due to their reliability and cost-effectiveness.

Key Benefits of PVC-U Fittings

High Flow Capacity: The smooth interior walls of PVC-U fittings reduce friction, allowing for high volume flow with minimal resistance.

Corrosion Resistance: Unlike metal fittings, PVC-U is immune to electrochemical reactions caused by acids, bases, and salts, making it an ideal choice for drainage systems.

Low Installation Costs: PVC-U fittings are lightweight and can be installed using solvent cement or gasketed joints, reducing labor and material costs.

Long Service Life: When properly maintained, PVC-U fittings can last over 50 years, offering long-term reliability.

Environmental Friendliness: PVC-U fittings are recyclable, contributing to sustainable building practices.

The Importance of Pipe Clamps with Nails in PVC-U Drainage Systems

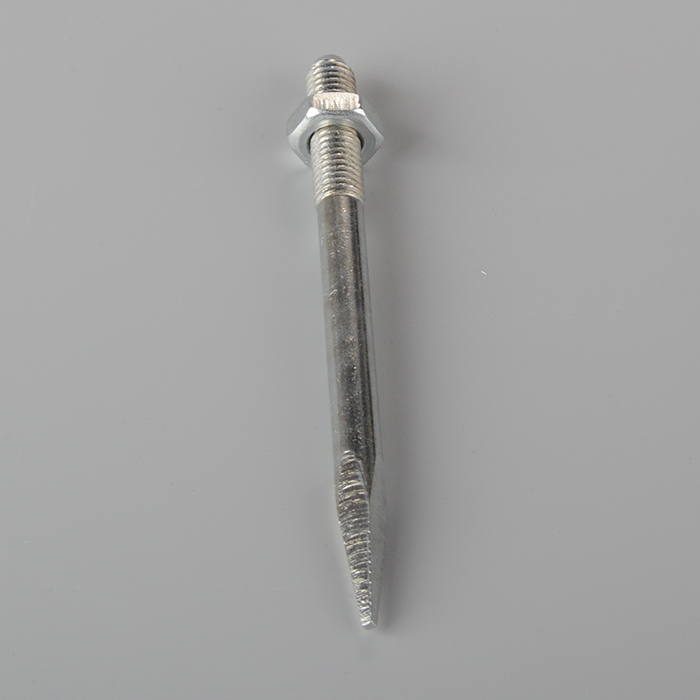

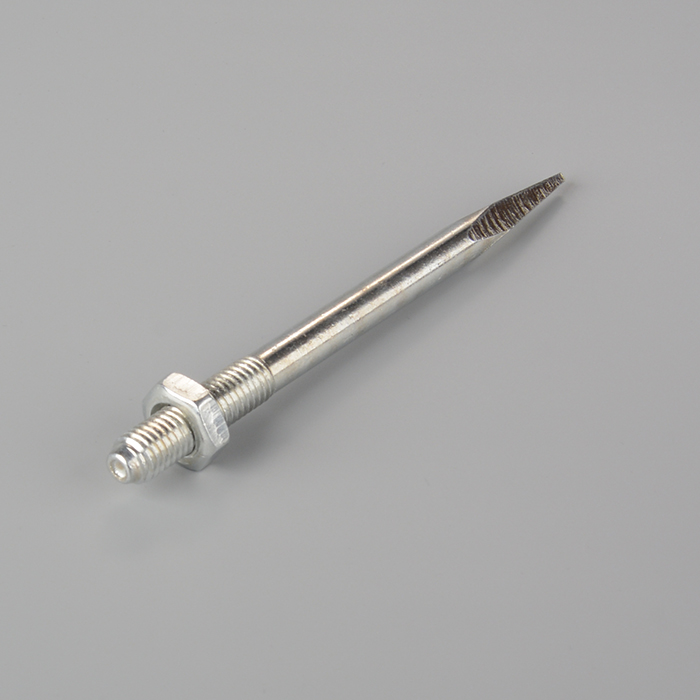

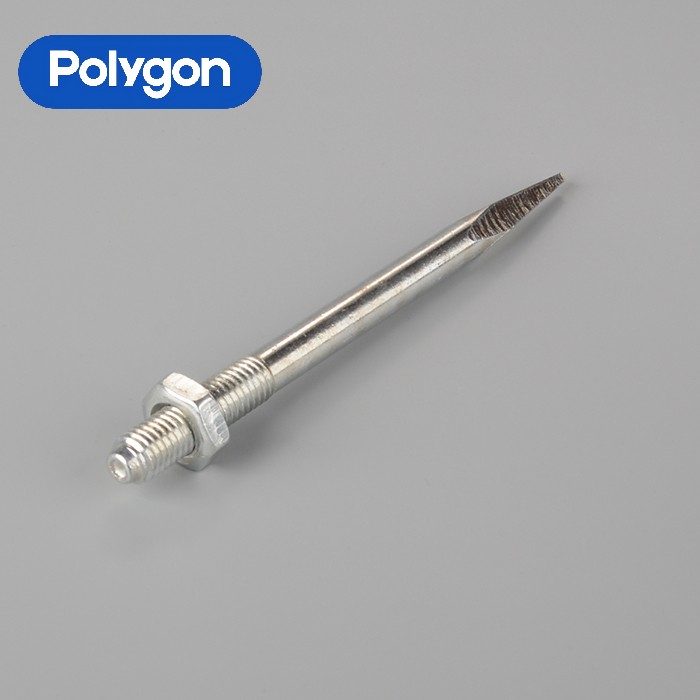

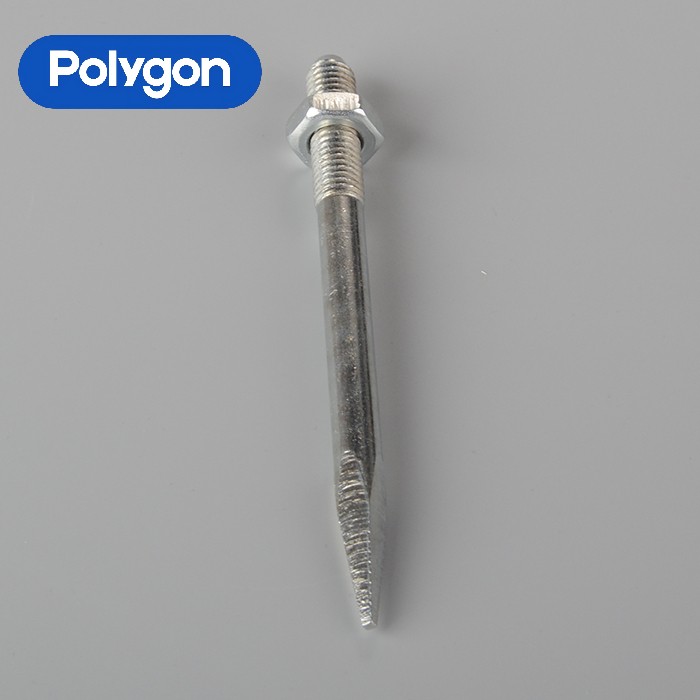

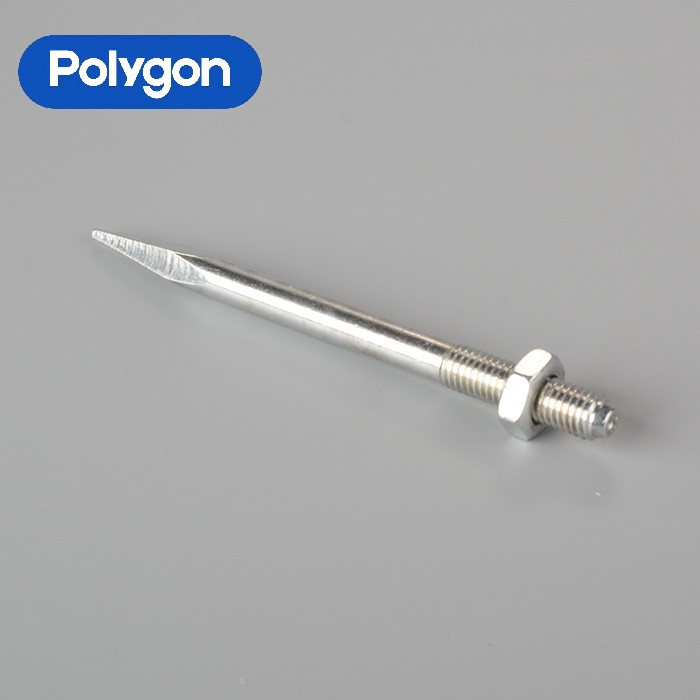

Pipe clamps with nails are crucial for securing PVC-U pipes in place. These clamps ensure that pipes remain stable and aligned, preventing leaks and ensuring the efficient flow of water. The inclusion of nails in the clamps allows for easy and secure attachment to walls or other surfaces.

Specifications of Pipe Clamps with Nails

Pipe clamps with nails are designed to fit various pipe sizes, typically ranging from 32mm to 315mm. They are available in different colors, with white being the most common. The clamps are manufactured to meet international standards such as ISO 3633 and GB/T 5836, ensuring quality and performance.

Advantages of Using Pipe Clamps with Nails

· Easy Installation: The nails allow for quick and secure attachment, reducing installation time and labor costs.

· Stability: Clamps provide stability to the piping system, minimizing the risk of misalignment or damage.

· Versatility: Suitable for various pipe sizes, making them adaptable to different drainage system designs.

Installation Methods for PVC-U Pipe Clamps

Proper installation of PVC-U pipe clamps is essential to ensure the efficiency and longevity of the drainage system. Here are two common methods:

1. Adhesive Connection Method

This method involves using solvent cement to secure the pipe fittings. Here’s a step-by-step guide:

· Clean the Surfaces: Wipe the inner wall of the pipe fitting socket and both ends of the straight pipe to remove any water or oil stains.

· Measure and Mark: Measure the length that the straight pipe should be inserted into the socket and mark the straight pipe accordingly.

· Apply Adhesive: Evenly apply a thin layer of adhesive on the inner wall of the pipe socket and the insertion part of the straight pipe.

· Insert the Pipe: Immediately insert the straight pipe into the socket, using a wire take-up machine to ensure it reaches the marked position. Hold it in place for 15 minutes to allow the adhesive to set.

2. Flaring Socket Connection Method

This method uses a flared socket and rubber ring to connect pipes. Follow these steps:

· Clean the Surfaces: Clean the inner wall of the flared tube and the outer wall of the straight tube insertion part.

· Measure and Mark: Measure the length of the flared part and mark the straight pipe, ensuring the mark is slightly shorter than the measured length.

· Prepare the Rubber Ring: Rotate the rubber ring into the groove of the flared end, with the sloped end facing outwards.

· Lubricate: Apply lubricant or soapy water to the insertion part of the straight tube and the rubber ring.

· Align and Insert: Align the insertion end of the straight tube with the flared end and use a wire take-up machine to insert the tube to the mark.

Conclusion

PVC-U fittings for drainage, particularly pipe clamps with nails, are indispensable components in modern plumbing systems. Their corrosion resistance, ease of installation, and long service life make them a preferred choice for various applications. By understanding the specifications and installation methods of these fittings, you can ensure the efficiency and durability of your drainage system.
