The Essential Guide to PVC-U Drainage Fitting: 45° Elbow
In the world of plumbing and drainage systems, the choice of fittings can significantly impact the efficiency and durability of the infrastructure. Among the various options available, the PVC-U drainage fitting, specifically the 45° elbow, stands out for its versatility and reliability. In this article, we will delve into the features, benefits, and applications of the PVC-U 45° elbow, providing you with a comprehensive understanding of why it is a preferred choice for many professionals.

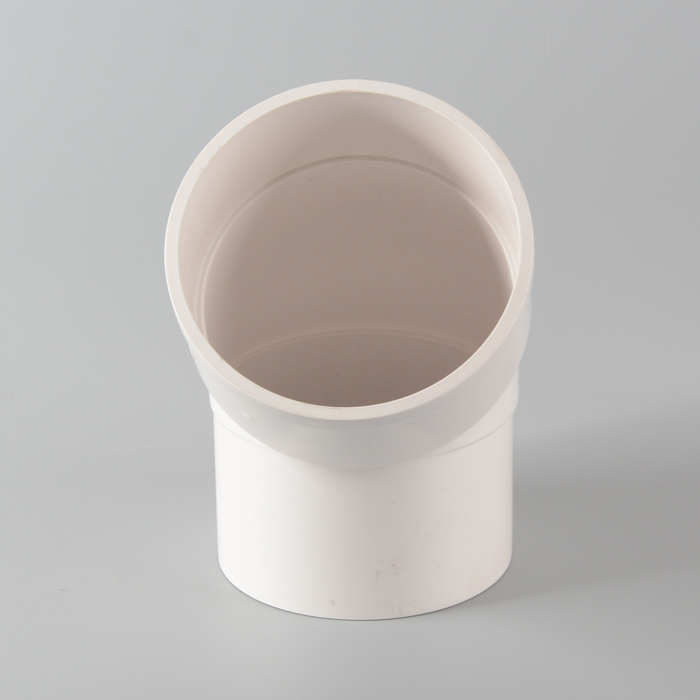

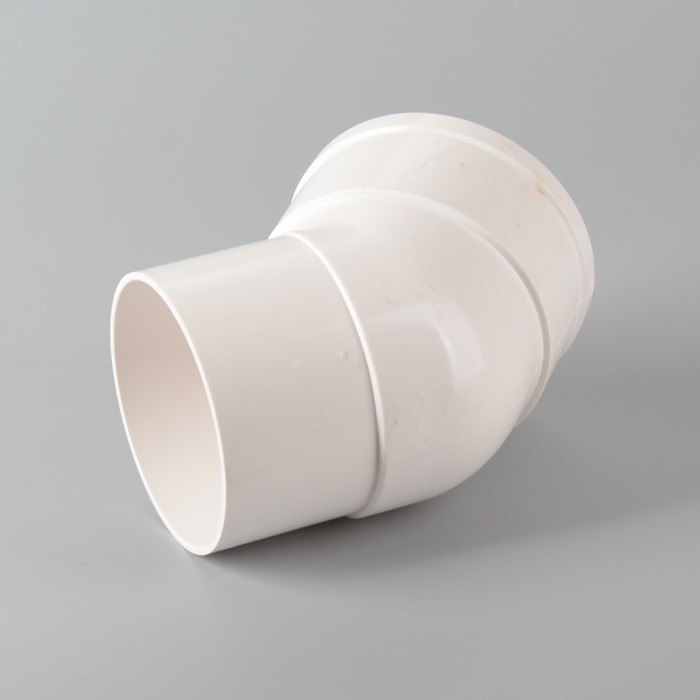

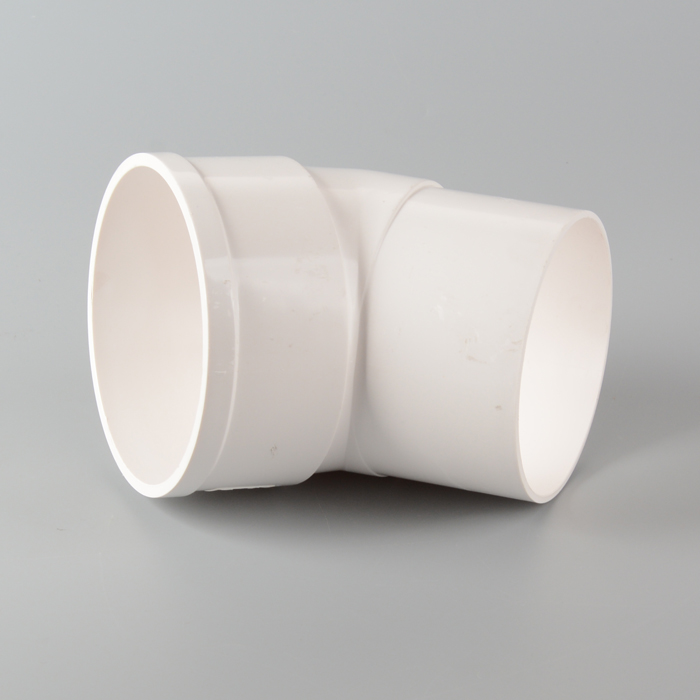

Understanding PVC-U 45° Elbow Fittings
PVC-U, or unplasticized polyvinyl chloride, is a robust material widely used in drainage systems due to its excellent resistance to chemicals, corrosion, and physical impact. The 45° elbow fitting is designed to facilitate a smooth change of direction in piping systems, making it an essential component in both residential and commercial drainage applications.
Key Features of PVC-U 45° Elbow
· Durability: Manufactured to meet industry standards like BS EN 1401-1, PVC-U fittings are built to withstand harsh environmental conditions, ensuring long-term performance.
· Lightweight: The lightweight nature of PVC-U makes it easy to handle and install, reducing labor costs and installation time.
· Chemical Resistance: PVC-U is inherently resistant to acids, alkalis, and other corrosive substances, making it ideal for drainage systems exposed to various waste materials.
· Cost-Effectiveness: With its low material cost and minimal maintenance requirements, PVC-U offers an economical solution for drainage needs.
Applications of PVC-U 45° Elbow in Drainage Systems
The 45° elbow fitting is a versatile component used in various applications within drainage systems. Here are some common uses:
Residential Drainage Systems
In residential settings, PVC-U 45° elbows are commonly used to redirect wastewater from kitchens, bathrooms, and laundry areas. Their ability to create smooth directional changes helps maintain efficient flow and prevent blockages.
Underground Drainage
PVC-U 45° elbows are integral to underground drainage systems, where they connect pipes at angles to navigate around obstacles or follow the terrain. These fittings are compatible with standard 110mm drainage pipes, ensuring seamless integration into existing systems.
Commercial and Industrial Applications
In commercial and industrial environments, PVC-U 45° elbows are used to manage drainage in factories, warehouses, and office buildings. Their durability and resistance to chemical exposure make them suitable for handling industrial waste.
Benefits of Using PVC-U 45° Elbow Fittings
When choosing fittings for drainage systems, the benefits of PVC-U 45° elbows make them an attractive option:
Outstanding Strength
PVC-U fittings are known for their resilience against physical impacts and harsh treatment. This strength ensures that the fittings maintain their integrity even under challenging conditions.
Easy Installation
The lightweight nature of PVC-U 45° elbows simplifies the installation process. Additionally, these fittings often come with socketed ends and EPDM rubber seals, allowing for secure and leak-proof connections.
Low Maintenance
PVC-U fittings require minimal maintenance, as they do not rot, flake, or split. This characteristic reduces the need for frequent repairs and replacements, saving time and money in the long run.
Environmental Benefits
Many PVC-U fittings are manufactured with recycled materials, contributing to environmental sustainability. By choosing these fittings, you are helping to protect natural resources while ensuring efficient drainage solutions.
Technical Specifications and Standards
Understanding the technical specifications of PVC-U 45° elbow fittings is crucial for selecting the right product for your needs. Here are some key specifications:
· Material: PVC-U, with EPDM rubber seals for secure connections.
· Color: Typically terracotta for underground drainage, distinguishing them from above-ground pipes.
· Compatibility: Suitable for all 110mm PVC-U systems manufactured to BS EN 1401 or BS EN 13476-2 standards.
· Temperature Range: Designed to operate efficiently across a wide range of temperatures, ensuring reliability in various climates.
Tips for Installing PVC-U 45° Elbow Fittings
Proper installation is essential to maximize the performance of PVC-U 45° elbow fittings. Here are some tips to consider:
1. Plan the Layout: Before installation, plan the layout of your drainage system to ensure all points are accessible for inspection and maintenance.
2. Ensure Correct Fall: Lay the system with the correct fall to facilitate efficient drainage and prevent water pooling.
3. Use Compatible Components: Ensure all components, including pipes and fittings, are compatible with your chosen system standards.
4. Secure Connections: Use rubber seals and socketed ends to create secure, leak-proof connections.
Conclusion
PVC-U drainage fittings, particularly the 45° elbow, offer an excellent solution for efficient and reliable drainage systems. With their durability, ease of installation, and cost-effectiveness, these fittings are a preferred choice for many professionals in the plumbing and construction industries. Whether you are working on a residential, commercial, or industrial project, consider integrating PVC-U 45° elbows into your drainage system for optimal performance.
