UPVC drain pipes, with their comprehensive advantages of corrosion resistance, smooth inner walls, lightweight for easy installation, and good economy, have become the material of choice for modern building drainage systems. Their application spans the entire building lifecycle, covering civil, industrial, municipal, and other fields. Specific application scenarios can be categorized into three main modules: "indoor domestic sewage and rainwater drainage," "special commercial and industrial drainage," and "building complex and outdoor gravity-flow conveyance." The core to selection is strictly adhering to their temperature and pressure limits (non-pressure, low temperature) and matching the appropriate specifications, connection methods, and environmental requirements for the specific scenario.

I. Indoor Building Domestic Sewage and Rainwater Drainage (Core Application)

This is the primary and most mature application area for UPVC drain pipes, accounting for over 70% of their total usage. The core standards are gravity flow, non-pressure, and low temperature.

1. Indoor Drainage Systems in Residential and Public Buildings

● Scenario Breakdown:

○ Fixture Drainage Branch Pipes: Short pipes connecting sanitary fixtures like sinks, wash basins, bathtubs, shower drains, and toilets. Typically sized DN50, DN75. They require smooth walls, resistance to clogging, and must be paired with P-traps or S-traps to form a water seal and prevent odors.

○ Drainage Horizontal Branch Pipes: Horizontal pipes connecting multiple fixtures on the same floor, typically DN75, DN110. Often installed in floor screeds, above ceilings, or within non-load-bearing walls. A minimum design slope of ≥1% must be guaranteed to ensure smooth drainage and prevent sedimentation and blockages. In noise-sensitive areas like ceilings, internal spiral sound-attenuating pipes can be used to reduce water flow noise.

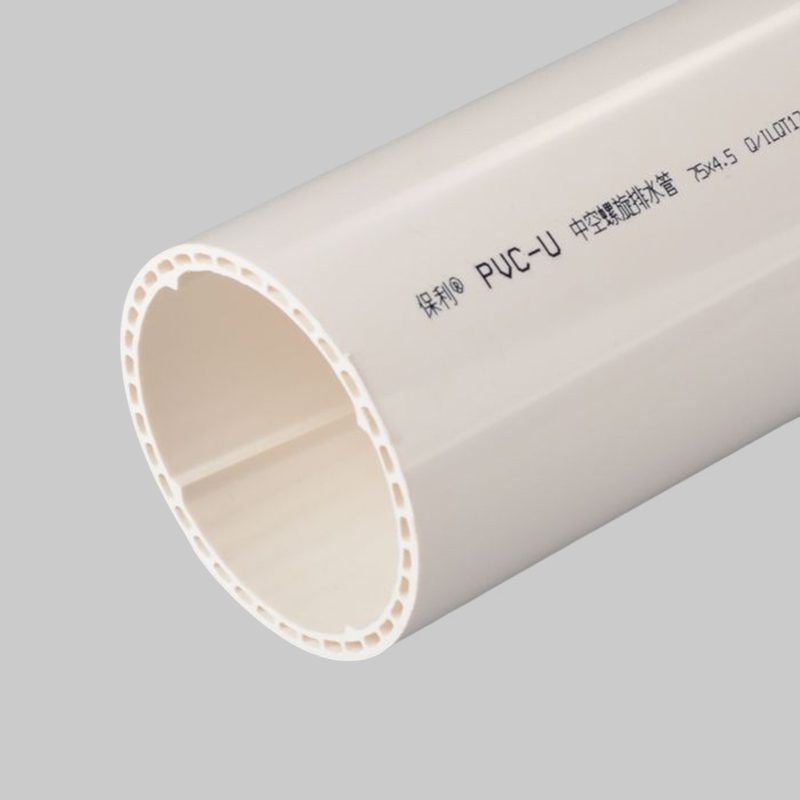

○ Drainage Vertical Stacks (Main Pipes): Vertical pipes collecting wastewater from all floors, the core of the system. DN110 is common for low-rise buildings, while DN110, DN160 are used for high-rise buildings. This is the focus for noise control. High-rise residential buildings must use internal spiral sound-attenuating pipes to effectively reduce the air column noise generated during drainage. Access fittings and vent caps must be installed at the bottom and top of the stack as per regulations to ensure stable system operation and maintenance access.

● Selection Key Points: Prefersolid-wall UPVC pipe (economical, versatile). For high noise reduction requirements, choose internal spiral sound-attenuating pipes. The connection method is predominantly solvent-weld socket connections. It must be clearly understood: Their use is strictly prohibited for continuous discharge of wastewater above 40°C.

2. Indoor Rainwater Drainage

● Scenario: Collecting rainwater from building roofs, discharging it in an organized manner to the outdoors or a recovery system via roof drains and downpipes. Pipes are typically surface-mounted on exterior walls or installed in pipe shafts.

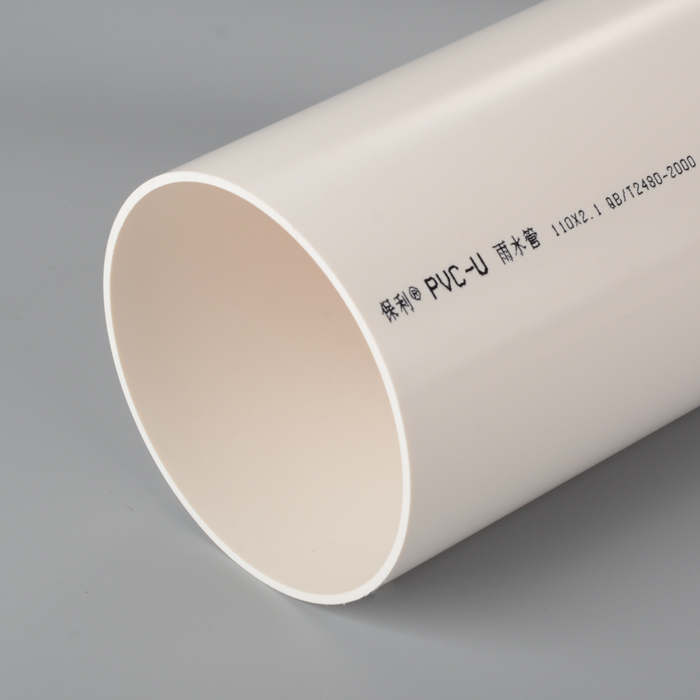

● Selection Key Points: Must use UV-resistant formula UPVC rainwater pipes to resist aging, discoloration, and strength degradation caused by long-term sun and rain exposure. Common specifications are DN75, DN110, DN160.

II. Special Commercial, Light Industrial, and Auxiliary Drainage

Subject to the limitations of their physical and chemical properties, UPVC pipes can be used in specific non-civil applications.

1. Auxiliary Drainage in Commercial Buildings

● Scenario: Drainage from pantries, restrooms, air conditioner condensate in office buildings, shopping malls, hotels, etc. Water quality is relatively mild, non-corrosive.

● Important Notes: Greasy wastewater from commercial kitchens must not be directly discharged into UPVC pipes; a grease interceptor must be installed upstream for treatment to prevent grease congealing and adhering to pipe walls. Air conditioner condensate discharge is an ideal application due to clean water, stable flow, and low temperature.

2. Light Industrial and Laboratory Drainage

● Scenario: General wash-down wastewater discharge in light industry workshops (electronics, textiles, food, etc.); weak acid/alkali wastewater from standard chemical labs in schools and research institutions (requires strict assessment of medium corrosiveness and concentration, referencing UPVC chemical resistance charts).

● Selection Key Points: Chemical compatibility assessment is mandatory. For uncertain or oxidizing acid/alkali waste streams, more corrosion-resistant materials (e.g., PP, PVDF) should be selected, or UPVC pipes should be internally lined. This scenario carries higher risk and requires careful justification.

III. Building Complex and Outdoor Gravity-Flow Conveyance

Pipes in this scenario are typically buried, requiring high ring stiffness (resistance to external pressure) and connection reliability.

1. Building Complex Sewage and Wastewater Connector Pipes

● Scenario: Horizontal conveyance of sewage from individual buildings to the complex's septic tank or municipal sewer manhole. Buried depth typically ranges from 0.7 to 3.0 meters.

● Selection Key Points: Must use UPVC solid-wall pipes with sufficient ring stiffness, such as ribbed or thick-walled solid-wall pipes (e.g., SN8 grade or above), to withstand backfill and surface loads. The connection method must use rubber ring socket flexible joints to accommodate potential uneven settlement and prevent joint separation or leakage. Common specifications are DN200, DN250, DN315.

2. Non-Pressure Industrial Wastewater Conveyance

● Scenario: Medium-distance conveyance of non-corrosive, ambient-temperature industrial cooling water or clean wastewater within factory premises.

● Selection Key Points: Similar to complex sewage pipes, focusing on ring stiffness and flexible connections. Must ensure wastewater composition is safe for UPVC material.

IV. Usage Prohibitions and Core "Red Lines"

● Temperature Red Line: Strictly prohibited for continuous discharge of waste/hot water above 40°C or instantaneous discharge above 80°C (e.g., steam condensate, boiler blowdown, high-temperature rinse water from food service).

● Pressure Red Line: UPVC drain pipes are designed for gravity flow, non-pressure systems. Strictly prohibited for use in pressurized water supply systems, fire protection systems, or pressure drainage systems.

● Environmental Red Line: UPVC pipes (especially non-rainwater pipes) that are permanently exposed outdoors to sunlight must use a UV-resistant formula or have effective light-shielding protection. Otherwise, they will rapidly embrittle due to photo-oxidative aging, significantly shortening their lifespan.

● Fire Protection Red Line: When penetrating fire compartments, floors, or pipe shafts, firestop collars or fire sleeves must be installed according to national fire codes, along with proper firestopping, to prevent fire spread along the pipes.

Summary

The successful application of UPVC drain pipes hinges on precise scenario definition and strict adherence to boundaries. For indoor domestic drainage and rainwater systems, it is a durable, cost-effective exemplary choice. Once the design boundaries of "non-pressure, low temperature, resistance to specific chemicals" are exceeded, other more suitable pipe materials (e.g., CPVC for high temperature, PP/HDPE for corrosion resistance, cast iron for pressure) must be resolutely chosen. System designers and engineers must have a clear understanding of this to ensure the long-term stability and safety of engineering projects.
