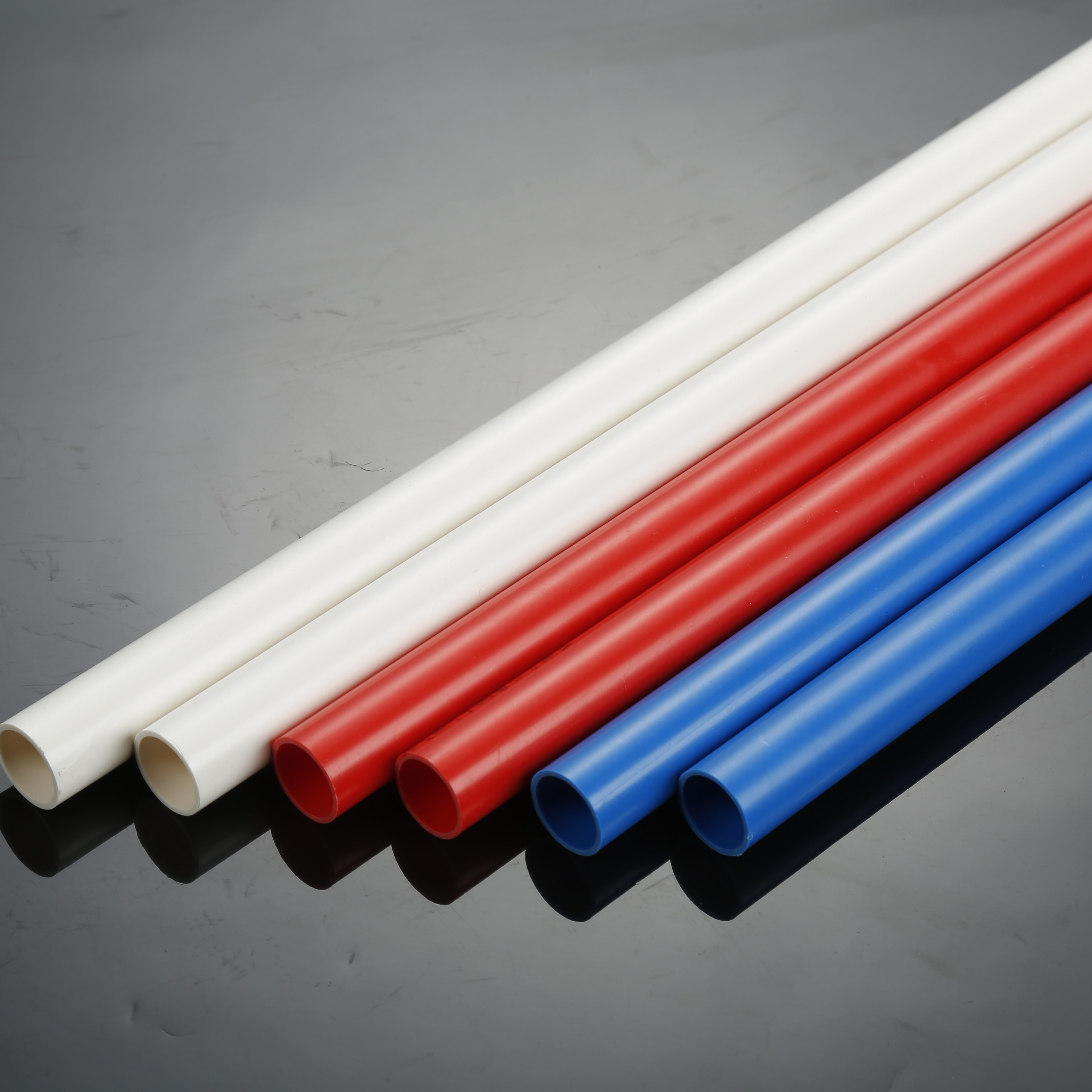

PVC electrical conduit (also known as "Insulated Electrical Conduit for Buildings"), with its combined advantages of insulation and flame retardancy, pressure and corrosion resistance, lightweight and easy installation, has become a core foundational material for modern building electrical wiring. Its application spans the entire building lifecycle, from main structural construction to interior finishing, forming three core application scenarios: concealed installation, exposed installation, and special environments. Each scenario has clear distinctions regarding conduit performance requirements, selection criteria, and construction techniques.

1. Concealed Installation (Core of Concealed Works)

Concealed installation is the primary application area for PVC electrical conduit, involving the building's main structure interior. It demands high strength and high sealing performance to avoid structural damage during future maintenance.

1.1 Pre-embedding in Cast-in-Place Concrete Structures

● Scenario: Electrical conduit is fixed to the rebar cage according to design plans before pouring concrete for shear walls, beams, columns, and floor slabs, forming integrally with the structure (e.g., floor slab pre-embedding in residential buildings, offices).

● Technical Requirements: Must use Heavy-duty (Grade 415/405) or Medium-duty (Grade 315/305) electrical conduit to withstand the impact and pressure of concrete vibration, preventing crushing. Joints must be securely solvent-welded using specialized cement, and conduit ends must be sealed (to prevent blockage by cement slurry). For low-temperature environments in northern regions, select -15°C type (315/415) to avoid brittleness.

1.2 Concealed Installation in Masonry / Lightweight Partition Walls

● Scenario: Wiring within grooves cut into, or utilizing cavities within, brick walls, aerated concrete block walls, or lightweight steel stud/plasterboard walls (e.g., wiring in bathroom, kitchen walls).

● Technical Requirements: Use Medium-duty (305/315) conduit for grooves in masonry walls. For wiring within lightweight steel stud walls, use Light-duty (205) or Medium-duty conduit, secured to the studs with conduit clips. Groove depth should be ≥ conduit outer diameter + 15mm (to protect the external covering and prevent wall surface cracking).

2. Exposed Installation (Surface Mounting and Renovation)

Exposed installation is suitable for scenarios where concealed installation is impossible or inadvisable. It demands aesthetics, secure fastening, and ease of maintenance.

2.1 Exposed Installation in Public Areas and Industrial Plants

● Scenario: Wiring on ceilings/walls of basements, equipment rooms, parking garages, factories, warehouses (e.g., garage lighting, factory power lines).

● Technical Requirements: Primarily uses Medium-duty (305) conduit, fixed with surface-mount junction boxes and conduit clips (spacing ≤1m). Use elbows or bending springs for turns to ensure straight, level, and square runs. For aesthetic needs, choose white or wall-matching colored conduit.

2.2 Installation Within Suspended Ceilings (Interior Finishing)

● Scenario: Wiring above integrated ceilings (mineral fiber panels, aluminum panels) in offices, malls, hotels (e.g., lighting, AC, fire alarm wiring).

● Technical Requirements: Not subject to pressure, so Light-duty (205) conduit can be used. Secure with conduit clips to the ceiling grid, with joints solvent-welded. Avoid direct, hard contact with ceiling grid members to prevent conduit abrasion.

3. Applications in Special Environments

For high-temperature, high-humidity, corrosive, or explosion-proof special scenarios, PVC electrical conduit requires customized selection.

3.1 Damp/Submerged Environments (e.g., pools, underground garages)

● Scenario: Wiring around swimming pools, near drainage channels in underground garages, water feature projects.

● Technical Requirements: Select damp-proof (or with added anti-permeation agent) electrical conduit. Seal conduit ends for waterproofing. When buried, add protective sleeves (against mechanical damage).

3.2 Corrosive Environments (e.g., chemical plants, laboratories)

● Scenario: Wiring in chemical plant buildings, laboratories, acid/alkali workshops.

● Technical Requirements: Select corrosion-resistant (with added anti-corrosion agents) electrical conduit. Avoid direct contact with acidic/alkaline media. Use corrosion-resistant cement for joints. Exterior of conduit can have a corrosion-resistant coating.

3.3 High-Temperature Environments (e.g., boiler rooms, kitchen flues)

● Scenario: Wiring in boiler rooms, adjacent to kitchen flues, within heating pipe shafts.

● Technical Requirements: Select high-temperature resistant (modified PVC, temperature resistance ≥70°C) electrical conduit. Avoid long-term high temperatures causing deformation. Keep away from heat sources (e.g., flues, radiators).

3.4 Explosion-Proof Environments

● Scenario: Wiring in gas stations, hazardous material warehouses, gas supply stations.

● Technical Requirements: Select explosion-proof (flame retardant rating ≥ B1, anti-static) electrical conduit. Use explosion-proof seals on joints. Conduit must have passed explosion-proof certification.

4. Other Specific Scenarios

● Renovation of Old Residential Areas: Primarily exposed installation, using Medium-duty (305) conduit, run along walls/ceilings, combined with junction boxes to hide joints, minimizing damage to the original structure.

● Temporary Structures (Prefab Houses, Construction Site Sheds): Quick exposed installation, using Light-duty (205) conduit, offering low cost, fast installation, meeting temporary power needs.

Summary of Selection and Installation

The application scenario for PVC electrical conduit requires integrated selection based on conduit specification (Φ16-Φ50), performance grade (Light/Medium/Heavy), and usage environment (temperature, humidity, corrosiveness):

● Concealed Installation (Concrete/Masonry): Prioritize Heavy-duty/Medium-duty, focus on pressure resistance and sealing.

● Exposed Installation (Public/Finished Spaces): Prioritize Medium-duty/Light-duty, focus on aesthetics and secure fastening.

● Special Environments: Prioritize custom types (damp-proof, corrosion-resistant, high-temperature resistant, explosion-proof), focus on targeted protection.

During installation, strictly adhere to the principles of "straight and level runs, secure joints, sealed conduit ends, adequate protective covering" to ensure electrical safety and system longevity.
