Introduction

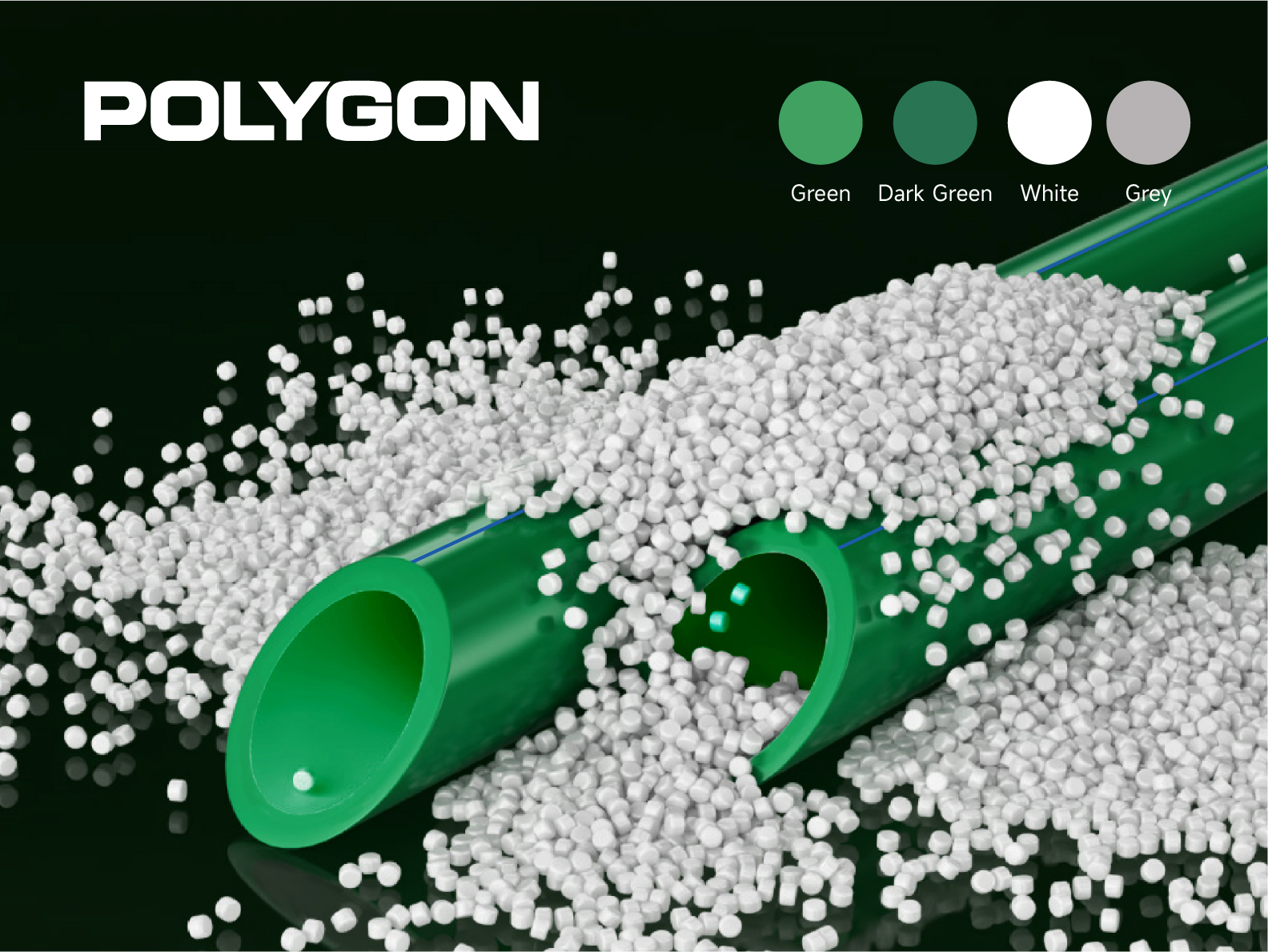

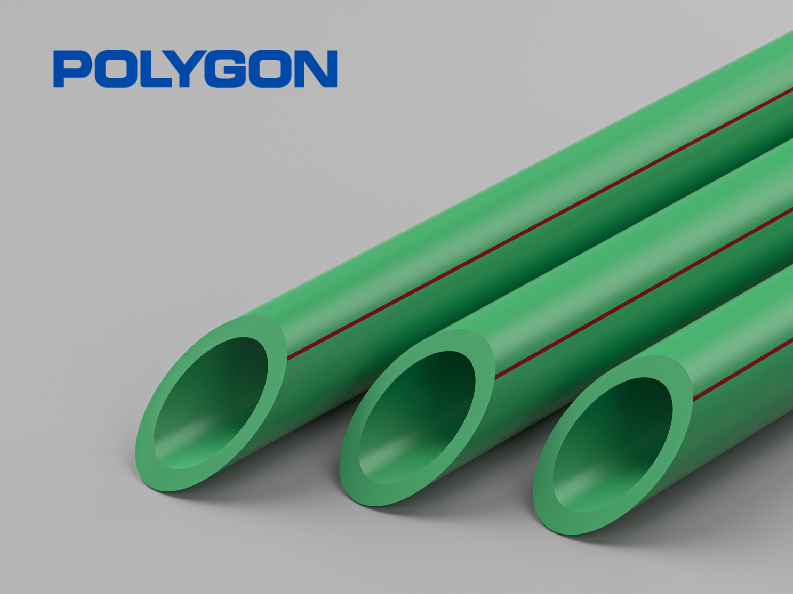

When planning a home renovation, proper installation of PPR pipes is just as important as choosing the right material. Even the highest quality pipes will fail if the installation is flawed. This guide covers the critical details of PPR pipe installation, with special attention to PPR Pipe, PPR Fiber Pipe, and PPR Aluminum Pipe, based on manufacturer guidelines and industry standards.

1. Preparation Before Installation

Before starting, inspect all PPR pipes and fittings. Check for visible defects such as cracks, uneven wall thickness, or foreign matter inside the pipe. Ensure the pipe ends are cut square and free of burrs. For PPR Fiber Pipe, verify that the glass-fiber reinforced layer is evenly distributed with no delamination. For PPR Aluminum Pipe, confirm that the aluminum layer is intact and the lap joint is properly formed (minimum overlap 0.5 mm). Store PPR pipes indoors, away from direct sunlight and extreme temperatures. In winter, handle with extra care – standard PPR has low-temperature brittleness, though PPR Fiber Pipe offers improved impact resistance. Use sharp cutting tools and never drop or strike pipes forcefully.

Required tools include: a PPR pipe cutter or fine-tooth saw, chamfering tool (reamer), heat fusion welding machine calibrated to 260±10°C, appropriate dies matching pipe diameter, measuring tape, marker pen, and a clean lint-free cloth. For PPR Aluminum Pipe, a specialized stripping tool is also needed to remove the outer layers before welding.

2. Cutting and Preparing Pipe Ends

Use a dedicated PPR pipe cutter to ensure a clean, square cut. If using a saw, remove all burrs afterward. An angled or rough cut will compromise the fusion joint. After cutting, use a chamfering tool to remove the sharp edge from the pipe end – approximately 2–3 mm deep at a 15°–30° angle. This prevents scraping the fitting socket during insertion and ensures proper melt flow. Finally, wipe the pipe end and the fitting socket with a clean, dry cloth to remove dust, grease, or moisture. Do not use solvents or alcohol – they can interfere with the fusion process. For PPR Fiber Pipe, the cutting and chamfering procedure is identical to standard PPR; the fiber layer does not require special treatment.

3. Heat Fusion Welding – The Core Process

PPR pipes must be joined by heat fusion welding. Solvent cement will not work – PP-R is not soluble in standard cements, and using them will cause immediate leakage. Set the welding machine to 260±10°C. Temperatures above 270°C will degrade the polymer, causing weak joints; temperatures below 250°C will not melt the material sufficiently.

Heating time depends on pipe diameter. Refer to the manufacturer’s table. Typical values: DN20 → 5 seconds, DN25 → 7 seconds, DN32 → 8 seconds, DN40 → 12 seconds, DN50 → 18 seconds. Simultaneously heat the pipe outer surface and the fitting socket. Do not overheat – excessive heating reduces the inner diameter and weakens the joint. PPR Fiber Pipe and PPR Aluminum Pipe use the same heating times as standard PPR, but note that the fiber layer in PPR Fiber Pipe may require slightly more careful alignment to ensure even melting.

After heating, quickly remove both parts from the machine. Insert the pipe into the fitting socket in one smooth motion, without twisting. Push to the pre-marked depth (marked on the pipe before heating). Hold firmly for 10–15 seconds to allow the joint to cool and solidify. Do not move the joint during cooling. Allow natural cooling – never use water or compressed air to accelerate cooling, as rapid cooling creates internal stresses.

4. Special Considerations for PPR Fiber Pipe and PPR Aluminum Pipe

PPR Fiber Pipe features a glass-fiber reinforced middle layer that reduces thermal expansion to about half of standard PPR. During welding, the fiber layer does not interfere with the fusion process – the inner and outer PP-R layers melt and bond normally. No special stripping or preparation is needed beyond standard chamfering and cleaning. However, due to its higher rigidity, the pipe may require slightly more force to insert into the fitting; do not twist, but push steadily.

PPR Aluminum Pipe (also called steady-state pipe or PPR-AL-PPR) has a three-layer structure with an aluminum foil middle layer. Before welding, the aluminum layer must be stripped from the pipe end using a specialized stripping tool. Remove the outer PP-R layer and the aluminum foil, exposing the inner PP-R layer. The stripping length should match the socket depth of the fitting. Only use fittings specifically designed for PPR Aluminum Pipe. Standard PPR fittings will not accommodate the aluminum layer. The fitting socket must have a step or groove to receive the exposed inner PP-R layer. The welding temperature and heating time are the same as for standard PPR pipe. However, because the aluminum layer conducts heat differently, ensure the pipe end is fully inserted to the correct depth. The aluminum layer will remain visible as a thin ring at the joint interface – this is normal.

After installation, the aluminum layer allows the pipe to be detected by a metal detector – useful for locating buried pipes during future renovations. PPR Fiber Pipe does not have this detectability feature.

5. Pipe Routing and Support

Concealed installation (buried in walls/floors) is preferred for aesthetics and protection. Ensure no joints are buried inside walls – all connections should be accessible via inspection openings. For exposed installation, only use white PPR pipe if clearly marked “not for exposed installation” per GB/T 18742. Otherwise, use colored pipes (green, yellow, blue) or add a protective sleeve. For exposed hot water lines, PPR Fiber Pipe and PPR Aluminum Pipe are recommended due to their low thermal expansion and high rigidity.

Support pipes with proper clamps at these intervals: For DN20–DN25, horizontal 1.0 m / vertical 1.5 m; for DN32–DN40, 1.2 m / 1.8 m; for DN50, 1.5 m / 2.0 m. For PPR Fiber Pipe and PPR Aluminum Pipe, spacing can be increased by 20–30% due to higher rigidity.

Standard PPR pipe has a linear expansion coefficient of ~0.15 mm/(m·K). PPR Fiber Pipe reduces this to approximately 0.07–0.08 mm/(m·K), and PPR Aluminum Pipe to about 0.03 mm/(m·K). For long exposed runs, fewer expansion compensation measures are needed when using these enhanced pipes.

6. Pressure Testing

After installation, conduct a hydrostatic pressure test before closing walls or floors. Test pressure: 0.8–1.0 MPa (or 1.5 times the working pressure, whichever is greater). Maintain pressure for at least 30 minutes. Check all joints for leaks. A pressure drop of more than 0.05 MPa indicates a leak. Perform the test at ambient temperature – avoid testing immediately after hot water has been running. All three pipe types (standard PPR, PPR Fiber, PPR Aluminum) follow the same testing procedure.

7. Common Mistakes to Avoid

8. Winter Installation Precautions

Use sharp cutting tools – slow, careful cuts. Avoid heavy pressure or impact on installed pipes. If the property will not be occupied during winter, drain all water from the pipes to prevent freezing damage. PPR Fiber Pipe offers improved low-temperature impact resistance compared to standard PPR, making it a better choice for cold-climate projects. However, all PPR pipes require protection from freezing water expansion.

Conclusion

Proper installation of PPR pipes is the foundation of a durable plumbing system. Whether using standard PPR Pipe for general water supply, PPR Fiber Pipe for reduced thermal expansion in underfloor heating or long runs, or PPR Aluminum Pipe for exposed heating loops with oxygen barrier requirements, following the correct welding procedure, supporting the pipes adequately, and conducting a thorough pressure test will ensure leak-free performance for decades.

Remember: heat fusion is the only acceptable joining method – never use solvent cement. With attention to these details, your PPR system will deliver reliable service for 50 years.
