PVC Electrical Conduit Pipe

I Product Introduction

PVC Electrical Conduit Pipe is a tube product manufactured primarily from polyvinyl chloride (PVC) resin, with additives like stabilizers and flame retardants, using the extrusion molding process. The product is categorized into rigid flame-retardant and flexible self-restoring types, suitable for protecting cables and wires under 2kV in industrial and civil buildings. Valued for its lightweight nature, flame retardance, excellent insulation properties, and easy installation, it is progressively replacing traditional galvanized steel pipes as the preferred material for modern building electrical conduit, both embedded and surface-mounted. Widely used for electrical wiring installation in residences, offices, shopping malls, and other locations, it provides reliable protection for building electrical safety.

I Product Features

● Excellent Insulation, Safe and Reliable: High resistance to dielectric breakdown, can withstand 25kV voltage without puncture, ensuring electrical lines are not dangerously energized. High volume resistivity effectively prevents electrical leakage incidents.

● Superior Flame Retardance, Self-Extinguishing: High oxygen index provides flame-retardant properties, self-extinguishing instantly upon removal from flame. Low flame propagation speed and low smoke density effectively slow fire spread in case of a fire.

● Strong Impact Resistance, Construction-Friendly: Can withstand pressure and impact, allowing for embedding in concrete without risk of damage from compression. In flattening tests, the diameter change rate is ≤25% and the elastic recovery rate is ≤10% under specified pressure, ensuring structural stability after burial or embedding.

● Moisture-Resistant and Corrosion-Resistant, Long Lifespan: Unlike metal conduits, it does not rust and is resistant to acid, alkali, and oil. Maintains stable performance in humid environments, with a design lifespan exceeding 50 years.

● Lightweight and Easy to Install, Saves Labor: Lightweight for easy handling. Uses socket-and-adhesive connections or dedicated fittings for quick and efficient installation. Flexible types can be cold-formed using a special bending spring, eliminating the need for complex equipment.

I Technical Specifications

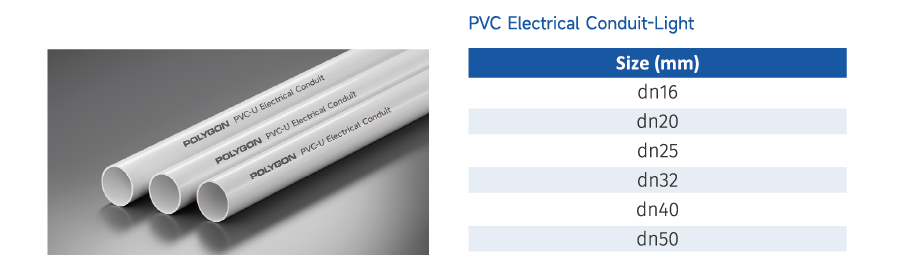

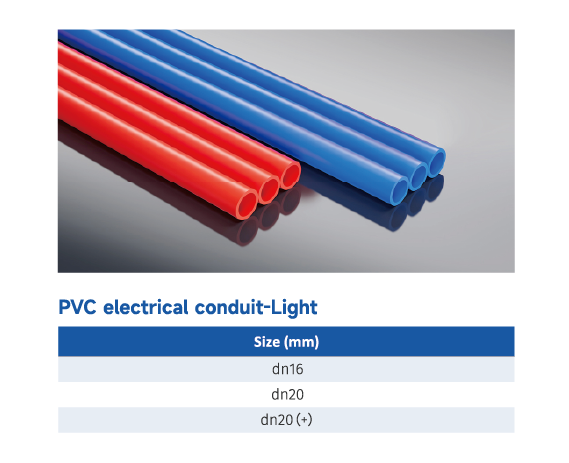

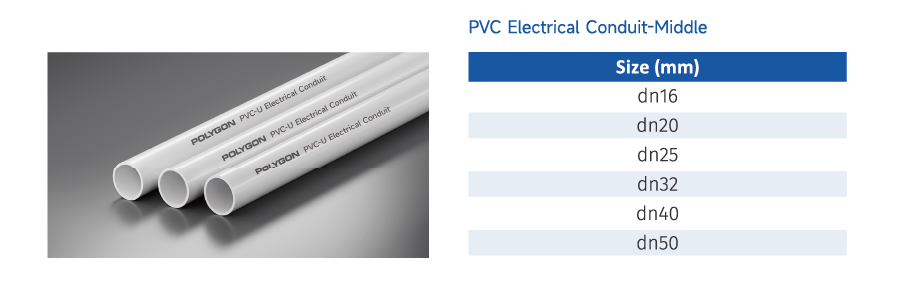

I Product Specification

I Comparison with Other Materials

I Application

● Electrical Embedded Conduit in Construction: Widely used for concealed wiring within walls and slabs in residences, offices, malls, etc.

● Surface-Mounted Indoor Wiring: Suitable for surface-mounted conduit systems indoors, fixed with pipe clips for neat appearance.

● Wiring in Ceiling Voids: Used for protecting electrical circuits within suspended ceiling and partition wall cavities.

● Embedding in Cast-in-Place Concrete Walls: Suitable for electrical conduit embedded in poured concrete walls.

● Protection for Equipment Wiring: Serves as protective tubing for motor and electrical equipment connection lines.

● Outdoor and Damp Environments: Excellent corrosion resistance makes it suitable for electrical wiring in damp areas like basements and garages.

I FAQ

1. What is the difference between PVC Electrical Conduit Pipe and PVC Drainage Pipe?

PVC Electrical Conduit Pipe is specifically designed for electrical wiring protection, with special performance requirements like flame retardance and insulation. Its oxygen index is ≥40% (Note: This value differs from the 32% in 1.4, please confirm the correct specification), and it is self-extinguishing, and must pass a 2kV dielectric withstand test. Drainage pipes do not possess these electrical safety properties and must not be used as a substitute for electrical conduit.

2. Can PVC Electrical Conduit Pipe be bent? How is it done?

Yes, it can be bent. Flexible PVC Electrical Conduit Pipe can be cold-formed using a special conduit bending spring. To bend, insert the spring into the pipe at the desired bending point, apply slow, even pressure to bend to the required angle, ensuring the bending radius is not less than 6 times the pipe's outer diameter. Remove the spring after bending. Never use an open flame to heat the pipe for bending.

3. What is the temperature range for PVC Electrical Conduit Pipe?

The continuous service temperature for PVC Electrical Conduit Pipe should not exceed 60°C. It should not be installed where the ambient temperature exceeds 50°C unless specifically stated as suitable by the manufacturer. For high-temperature environments (e.g., near boilers, ovens), high-temperature resistant CPVC Electrical Conduit Pipe should be selected.

4. Can PVC Electrical Conduit Pipe be used outdoors exposed to the elements?

It can be used outdoors, but note: PVC conduit exposed to direct sunlight should be resistant to UV aging. It is recommended to select specialized products with UV-resistant additives or to take protective measures like covering. Ordinary white PVC conduit can become brittle and age with long-term sun exposure.

5. How to select the PVC Electrical Conduit Pipe size?

The pipe diameter should be selected based on the cross-sectional area and number of wires to be pulled through. The general rule is that the total cross-sectional area of the conductors (including insulation) should not exceed 40% of the pipe's internal cross-sectional area. Typically, dn16 is used for home lighting branch circuits, dn20 for general-purpose socket circuits, and dn25 or dn32 for high-power circuits like air conditioners. Please refer to the wire fill capacity table for specific guidance.

6. What is your company's delivery time?

Stock products are typically shipped within 7 business days. For bulk orders, production is usually completed within 15-25 business days based on quantity. Specific quotes and timelines can be customized according to project requirements.
