I Product Description

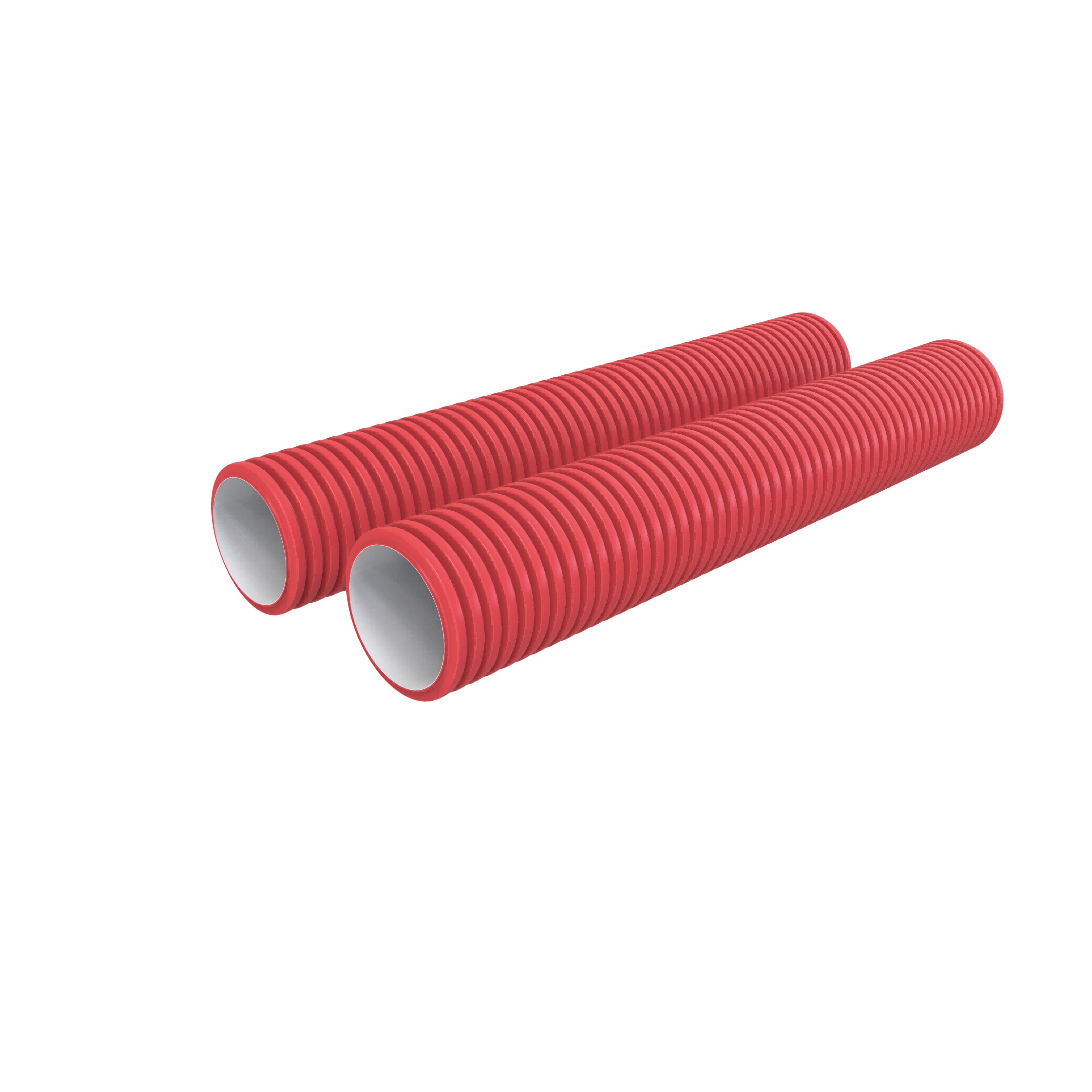

Ventilation Corrugated Round Pipe is manufactured from high-density polyethylene (HDPE) raw material, making it a flexible ventilation pipe with a double-wall corrugated structure. HDPE itself is a food-grade material with high crystallinity, being colorless, odorless, and completely non-toxic, ensuring a long material service life. The product features a double-wall structure, with the outer wall being a hollow corrugated layer that effectively reduces the transmission of host unit noise and the generation of pipeline vibration noise. When used in conjunction with distributors, it enables a "one-pipe-to-end" octopus-style piping system. It is widely applied in fresh air system projects for various types of buildings, including residences, apartments, hotels, hospitals, and schools.
I Product Features
● Food-grade Eco-friendly Material, Breathe Healthy Without Worry: Ventilation Corrugated Round Pipe is made from 100% virgin HDPE raw material, with no recycled materials mixed in. PE itself is a food-grade material, colorless, odorless, and non-toxic. It is antibacterial, mold-resistant, dust-resistant, and free of plasticizers, ensuring the air delivered indoors is pure and healthy.
● Double-wall Corrugated Structure, Significant Noise Reduction: The outer wall features a hollow corrugated layer, forming a natural sound barrier that effectively reduces the transmission of host unit noise and the generation of pipeline vibration noise. Compared to traditional PVC rigid pipes, it can significantly lower system operational noise.
● Flexible and Bendable, Continuous Pipe Runs: The pipe offers excellent flexibility, allowing for slight curvature bending during installation, reducing the need for elbows and joints. This avoids the risk of secondary pollution and noise at joints common in traditional construction, while also greatly improving the effective air delivery rate of the entire fresh air system.
● Smooth Inner Wall, Low Air Resistance, High Air Delivery Rate: The inner wall of the double-wall corrugated pipe is smooth and even, resulting in low air resistance. When used with a distribution box, it enables simultaneous multi-pipe fresh air distribution, ensuring relatively uniform airflow at the outlets.
● Easy Installation, Saving Time and Labor Costs: Due to the high flexibility of the pipe, it can adapt to diverse construction requirements, shortening ductwork installation time and reducing transportation and labor costs. The need for numerous elbow fittings is eliminated, making installation simple and quick.
I Technical Specifications
Parameter | PE Corrugated Fresh Air Ducts |
Material | High-Density Polyethylene (HDPE), 100% virgin material |
Structure | Double-wall corrugated, hollow outer layer |
Common Sizes | dn75mm, dn90mm, dn110mm, dn160mm, dn200mm |
Recommended Airflow per Duct | ≤30 m³/h |
Operating Temperature | -20°C to +60°C |
Connection Method | Seal Ring Socket Connection |
Environmental Performance | Antibacterial and Mildew-resistant |

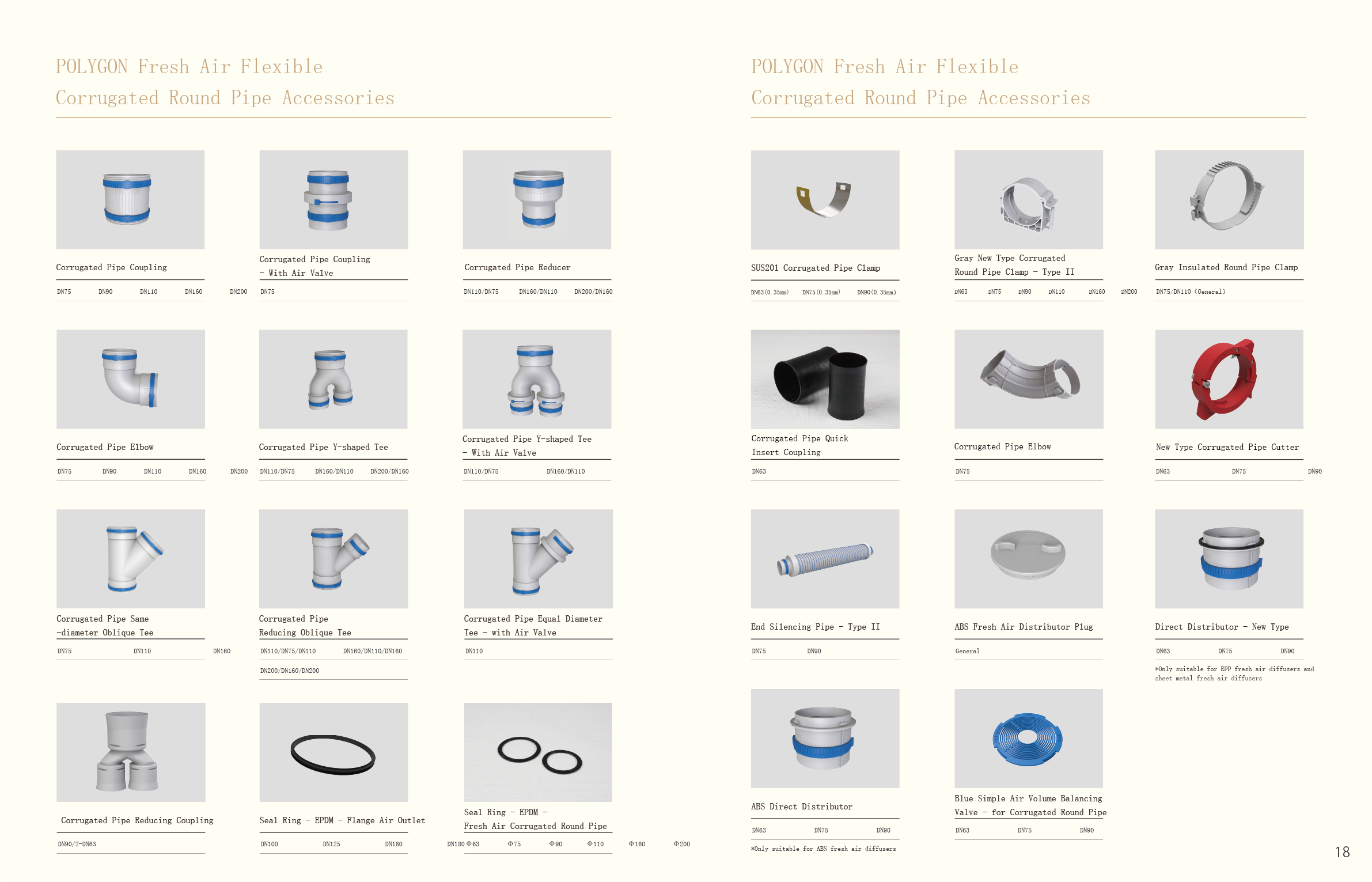

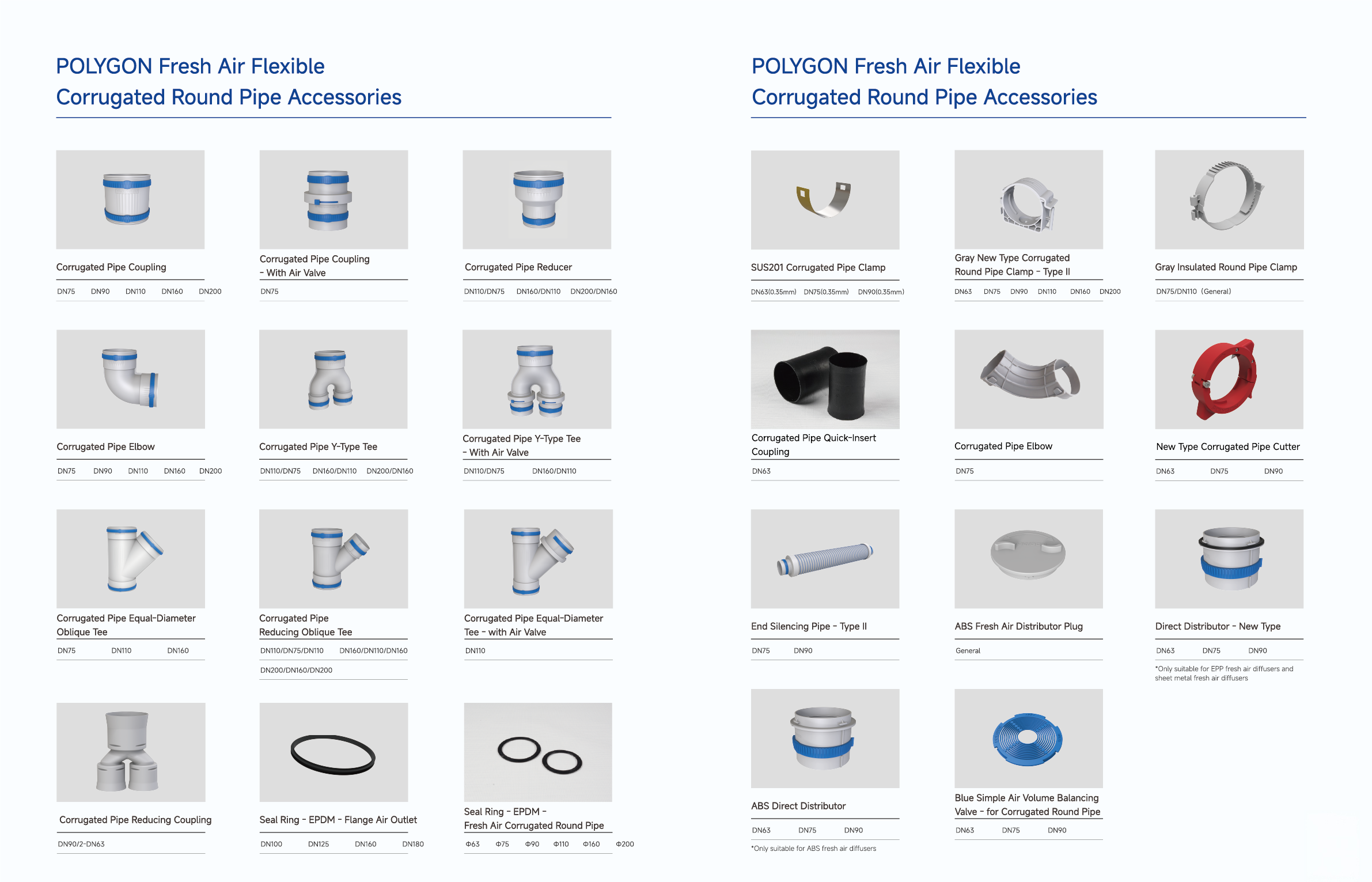

I Component Overview
Component Category | Main Products | Functional Characteristics |
Main Ducts | Ventilation Corrugated Round Pipe | Flexible and bendable, allows continuous runs to reduce joint leakage risk. |
Distribution Manifolds | ABS, EPP, Sheet Metal | Reduces noise, provides insulation and condensation prevention, multi-hole design, flexible installation, low resistance, uniform air supply, easy to clean.(Notes: ABS distributor: High cost-performance ratio; EPP distributor: Good insulation and moisture-proof; Sheet metal distributor: Suitable for high air volume, meeting customized requirements) |
Connection Seals | Corrugated Pipe Coupling, Elbow, Reducing, Y-type Tee, Equal-diameter Oblique Tee, Reducing Oblique Tee | Quick installation, flexible adaptation, diverse applications, healthy and aesthetically pleasing. |
Fixings | End Silencer Pipe, Indoor Air Outlet Adapter, Indoor Outlet | Reduces indoor noise, allows free adjustment, multi-diameter adaptation, convenient installation, adjusts airflow, elegant and stylish. |
Terminal Fittings | Pipe Clamp | Quick installation, neat arrangement, stable and aesthetically pleasing. |

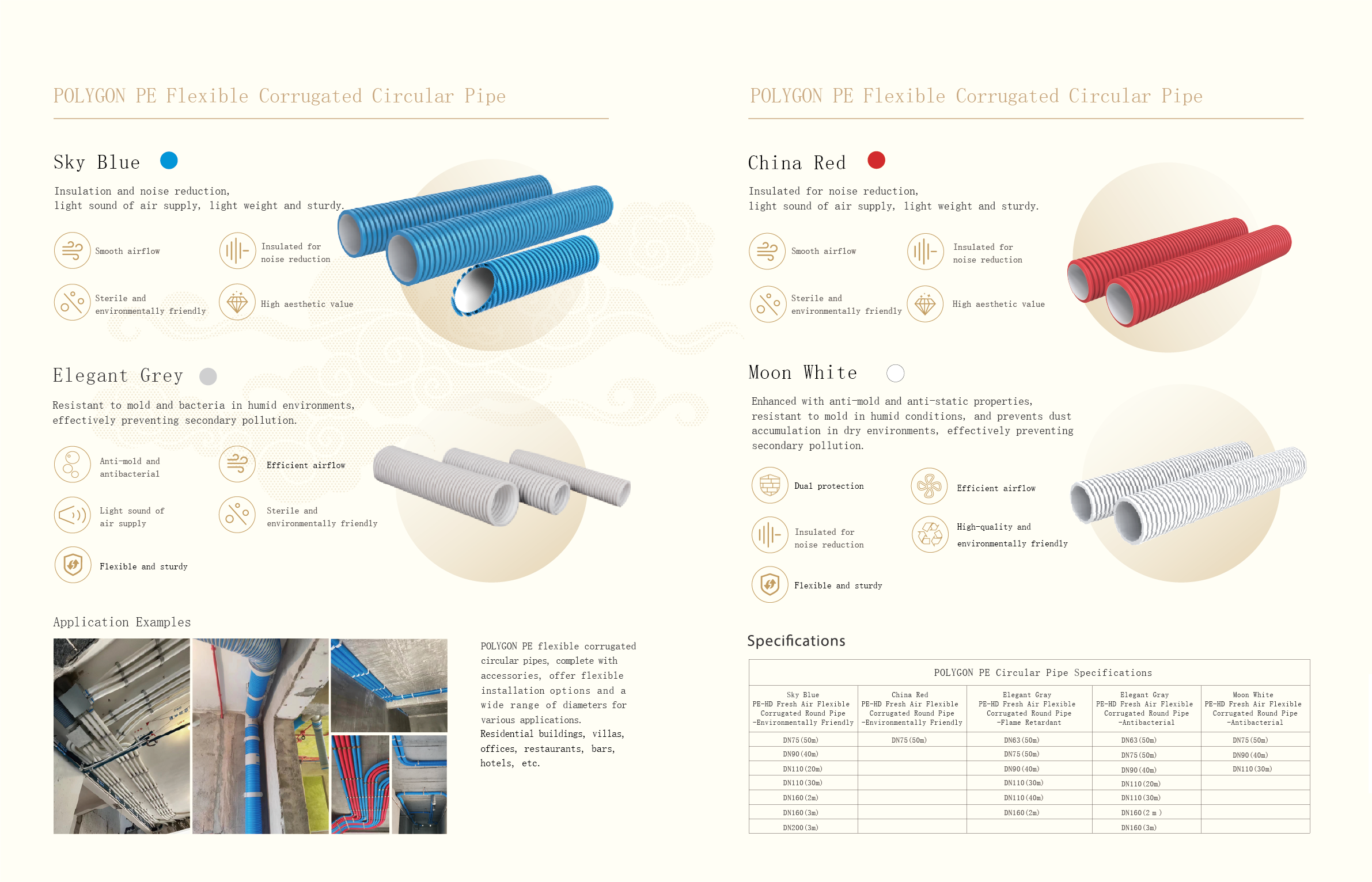

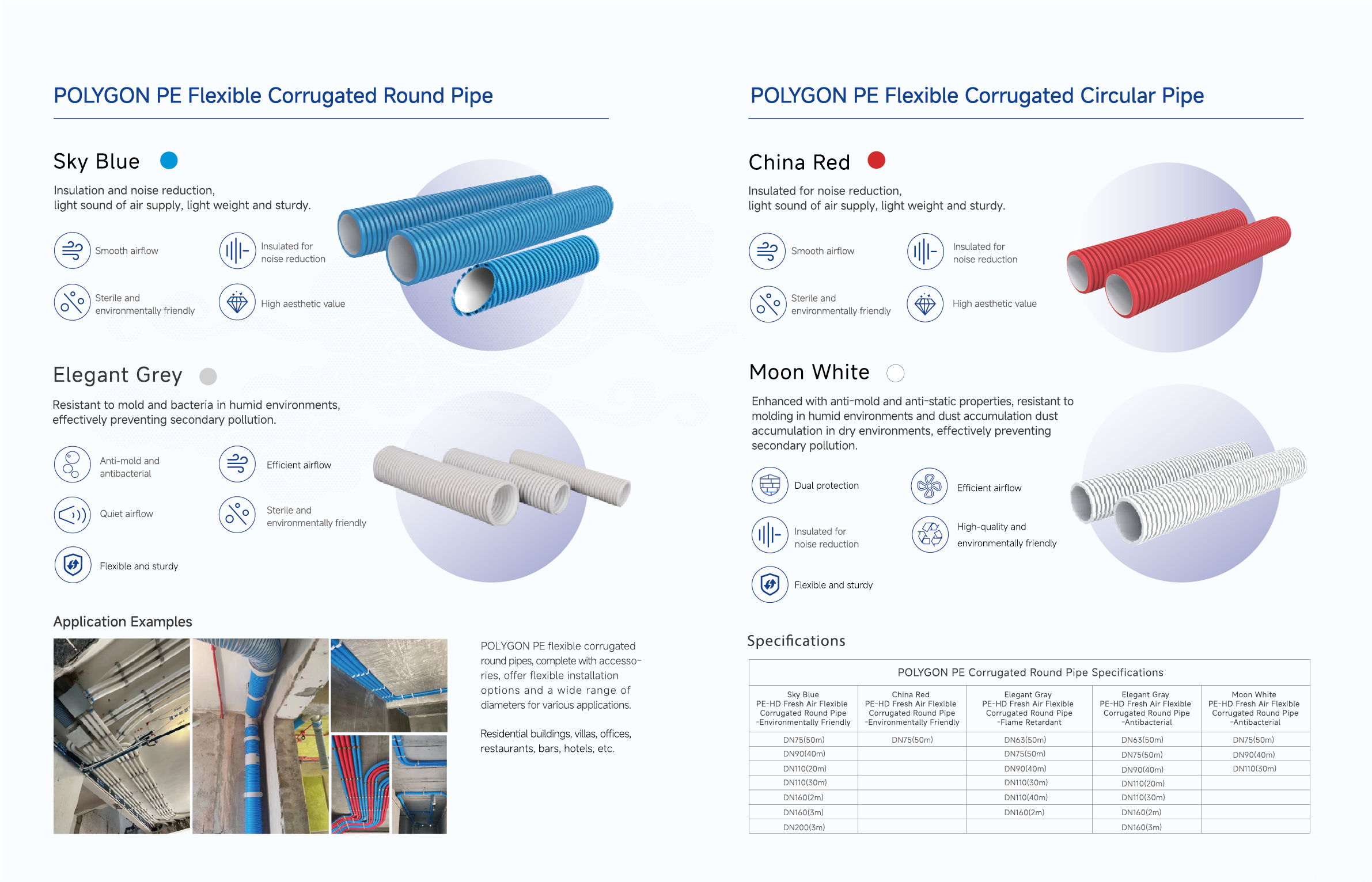

I Product Specification
I Application
● Residential Buildings and Apartments: Fresh air systems for villas, flats, and apartments, achieving balanced whole-house air distribution.
● Public Buildings: Hotels, hospitals, schools, office buildings, and other facilities with high indoor air quality requirements.
● Commercial Spaces: Shopping malls, supermarkets, conference rooms, entertainment venues.
● Industrial Facilities: Food processing plants, control rooms, laboratories, smoking rooms.
I FAQ
1. Why should the PE fresh air system be used with a distributor?
The distributor acts as a plenum box, reducing dynamic pressure, increasing static pressure, and stabilizing airflow. When used in conjunction with PE pipes, it enables simultaneous multi-pipeline distribution of fresh air, allowing independent control for each terminal outlet and ensuring uniform airflow distribution at the air outlets. Poly's standardized installation process adopts the principle of "one continuous pipe run, paired with a distribution box."
2. What are the limitations on the length and air volume of a single PE pipe?
According to installation specifications, the designed air volume for a single pipe is recommended not to exceed 30 m³/h (for DN75 pipes). Under these operating conditions, both air resistance and noise are within a reasonable range. The installation length of a single pipe is recommended not to exceed 20 meters; otherwise, it will result in significant air volume loss.
3. What are the requirements for the installation spacing of PE pipes?
When arranging straight pipe sections, it is recommended to use a pipe clamp every 80 centimeters. When the pipe makes a turn, due to stress effects, it is recommended to install a clamp every 30 centimeters on both sides of the bend, and the pipe's bending radius must be met. These specifications ensure the pipes are securely fixed, preventing deformation and noise during long-term use.
4. What are your company's minimum order quantity, payment methods, and delivery time?
Items in stock are generally shipped within 7 working days. For bulk orders, production and shipment are typically completed within 15-25 working days depending on the quantity. Specific quotations and timelines can be customized based on your requirements.
